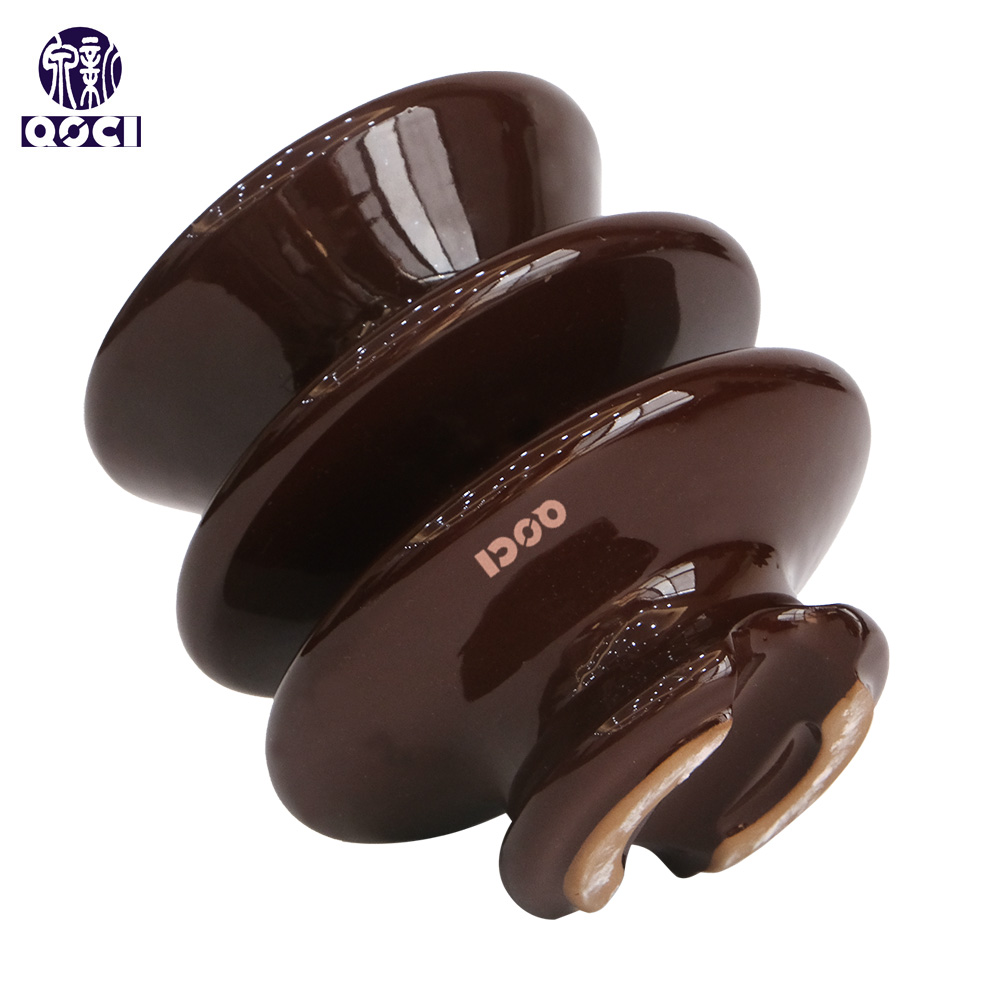

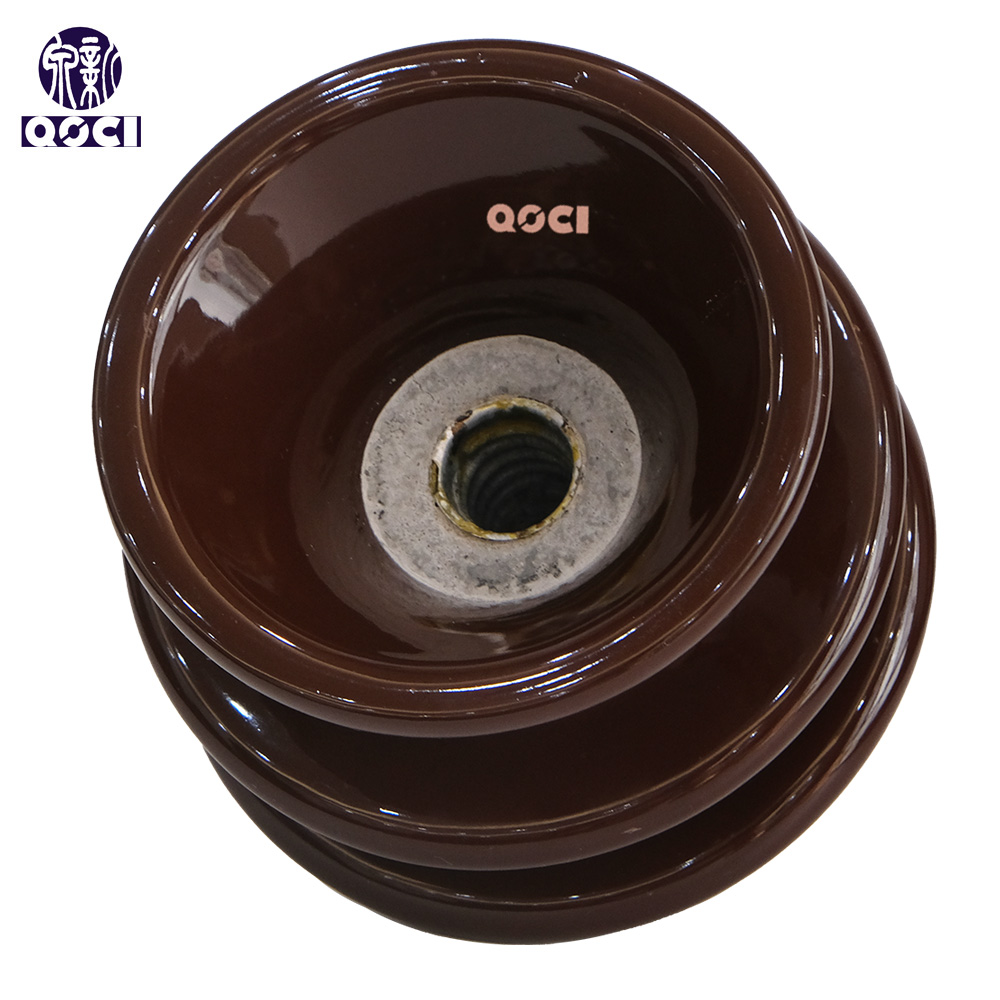

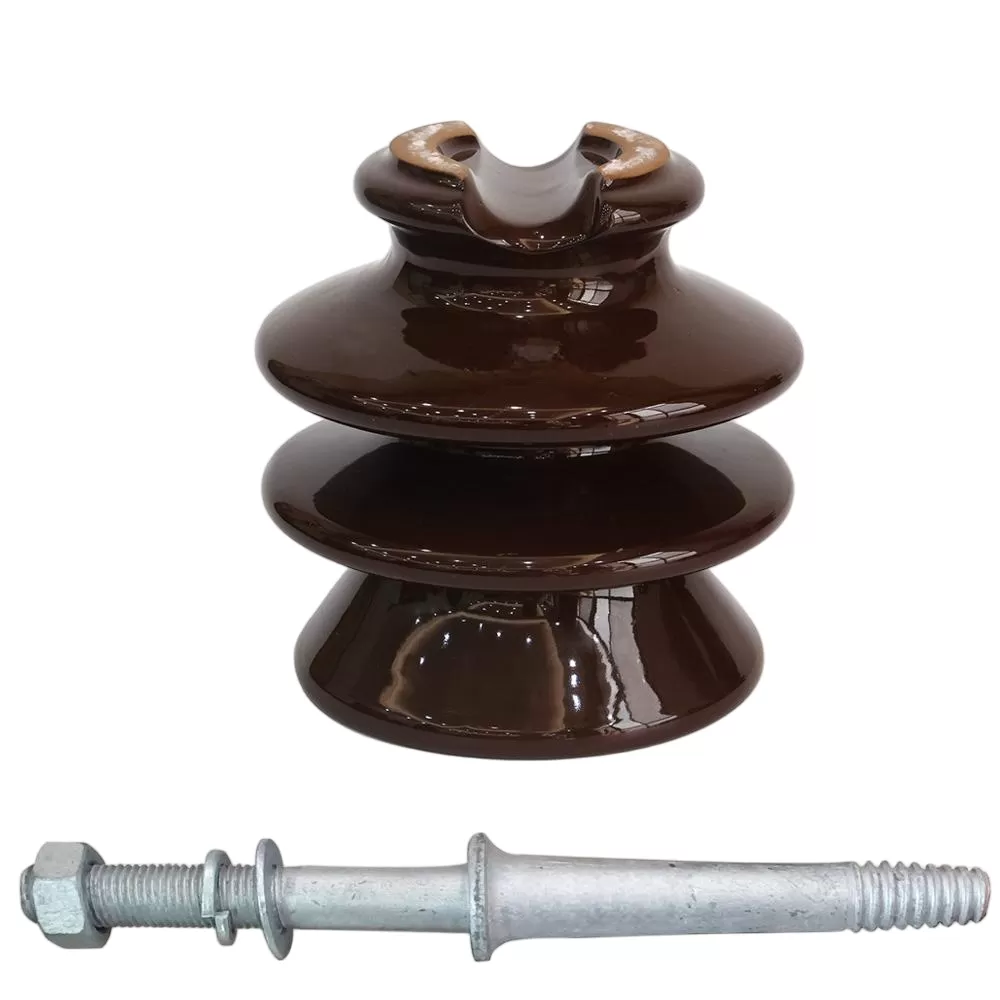

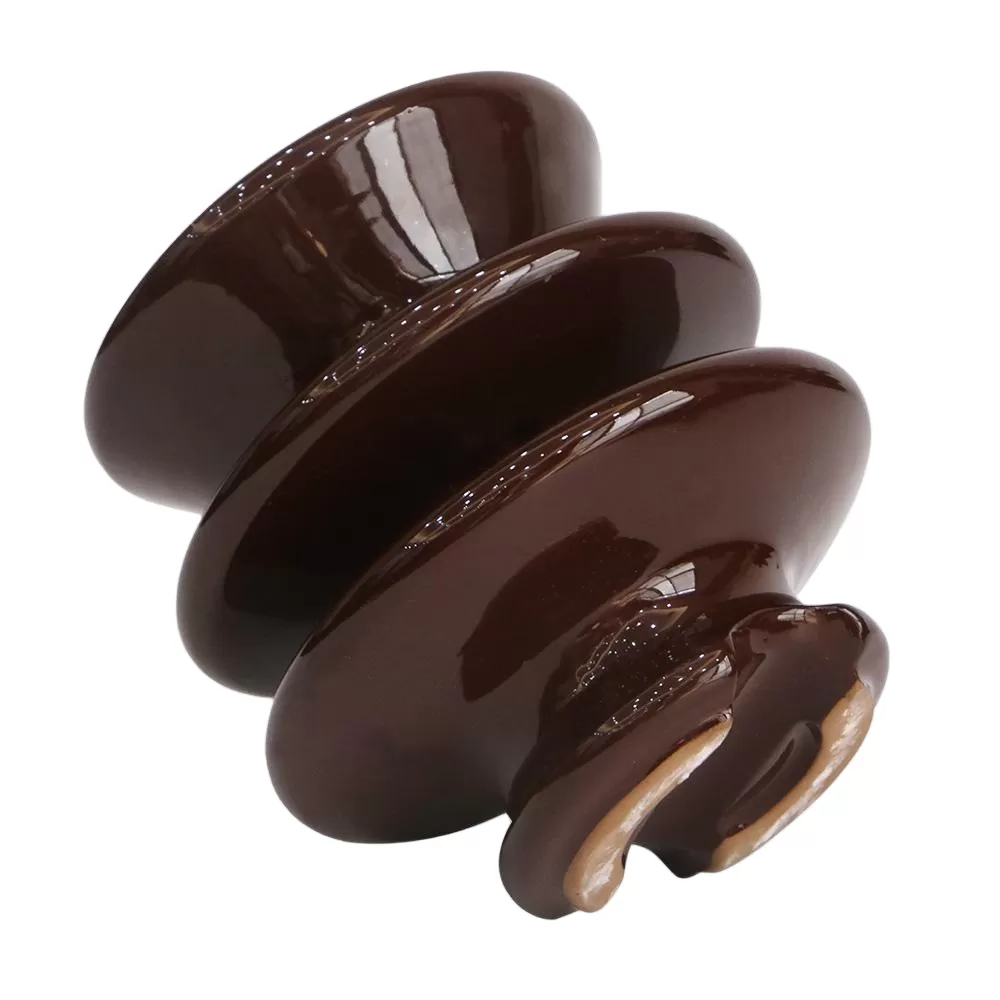

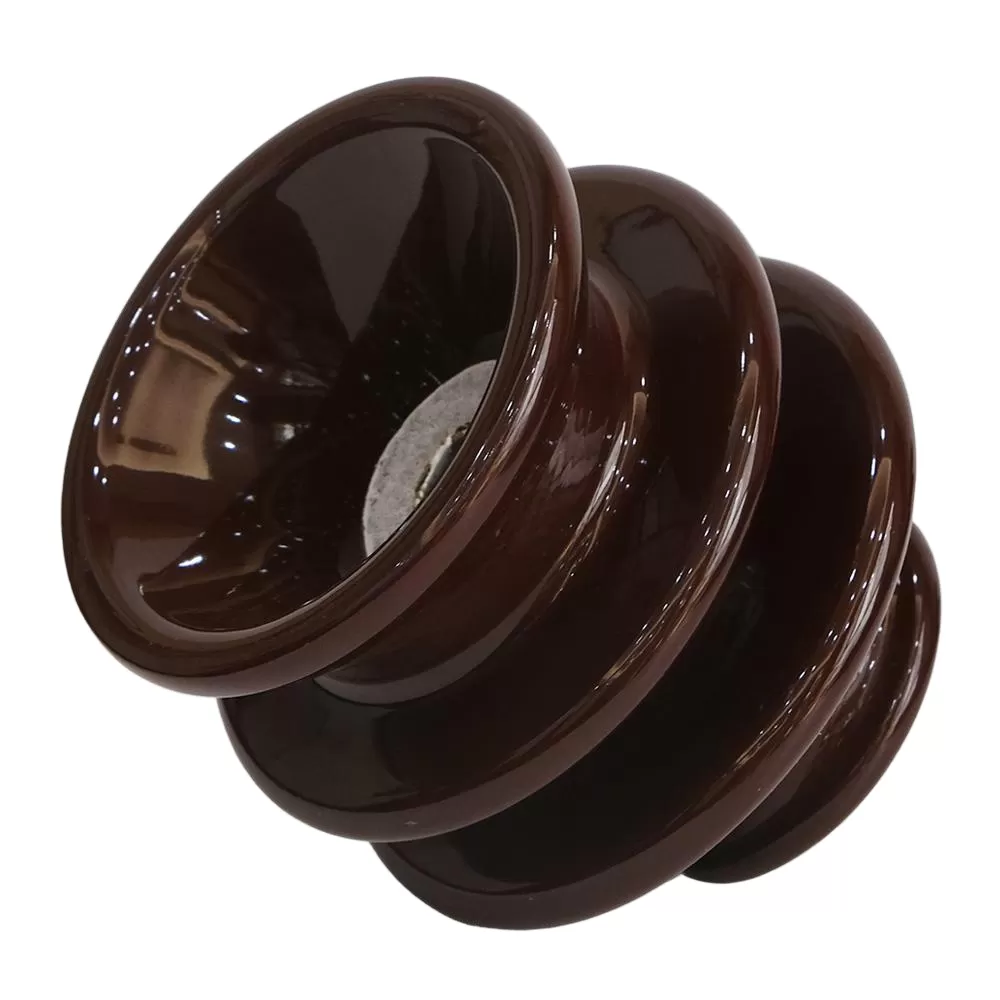

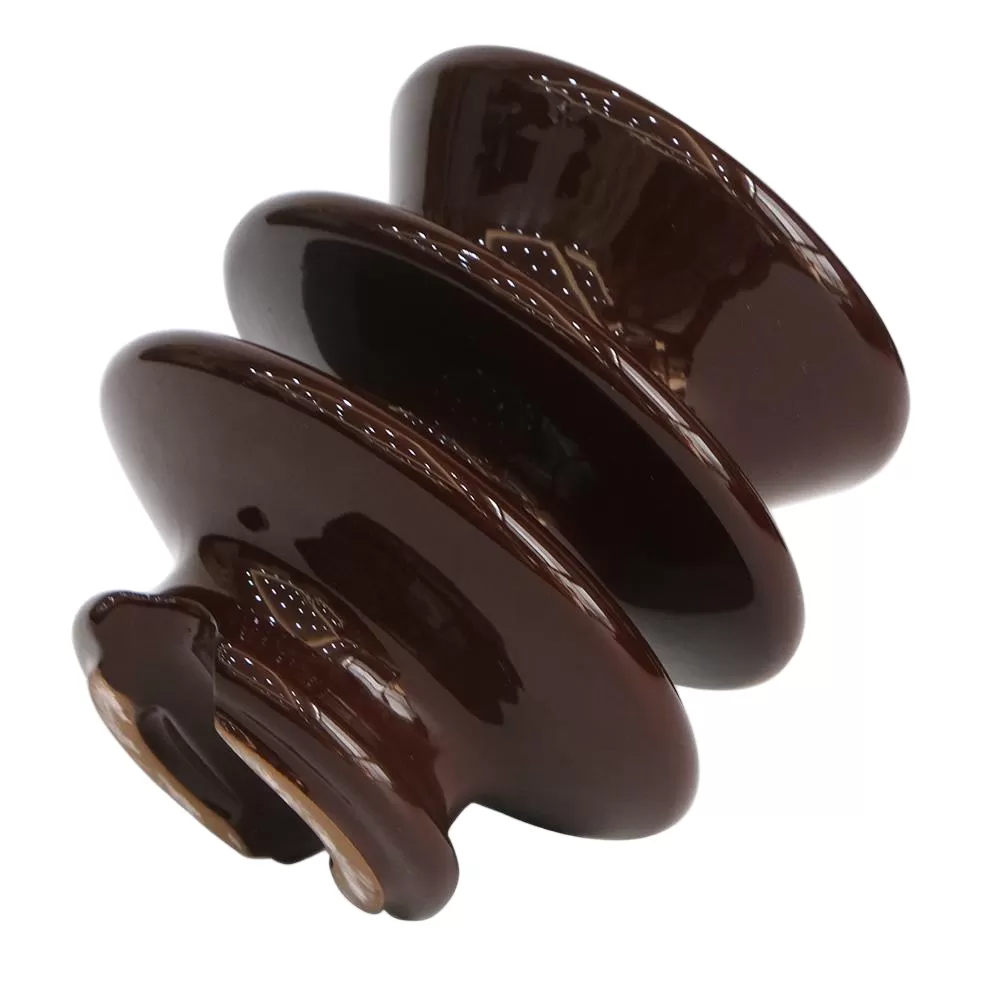

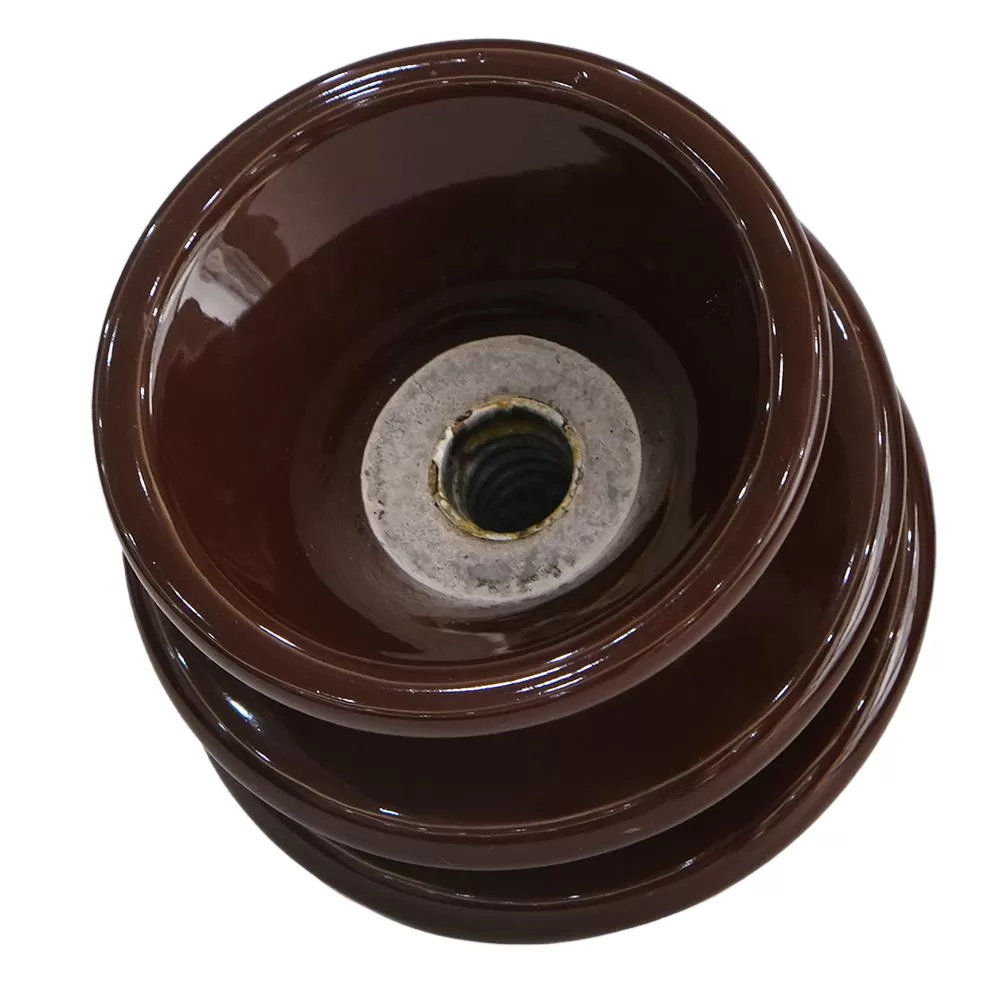

11kV Porcelain Insulator P-11-Y Pin Insulators with Spindle
Product parameters
| Pin type porcelain insulators | |||||
| IEC383-1 CLASS | P-11-Y | P-11-Y | P-11-Y | ||
| Dimensions | |||||
| Height | H | mm | 133 | 140 | 150 |
| Diameter | D | mm | 140 | 140 | 150 |
| Creepage distance | mm | 240 | 275 | 275 | |
| Mechanical Values | |||||
| Cantilever strength | kn | 11 | 10 | 10 | |
| Min Flashover Voltage | |||||
| Power frequency | Dry | kv | 75 | 65 | 75 |
| Wet | kv | 50 | 35 | 60 | |
| Power frequency Puncture Voltage | kv | 130 | 105 | 130 | |
| Withstand voltage | |||||
| One min Power Frequency | Dry | kv | 65 | 65 | 65 |
| Wet | kv | 40 | 40 | 45 | |
| impuse | kv | 90 | 95 | 95 | |
| Packing and Shipping Data | |||||
| Net weight per unit | kg | 1.8 | 2.25 | 2.3 | |
