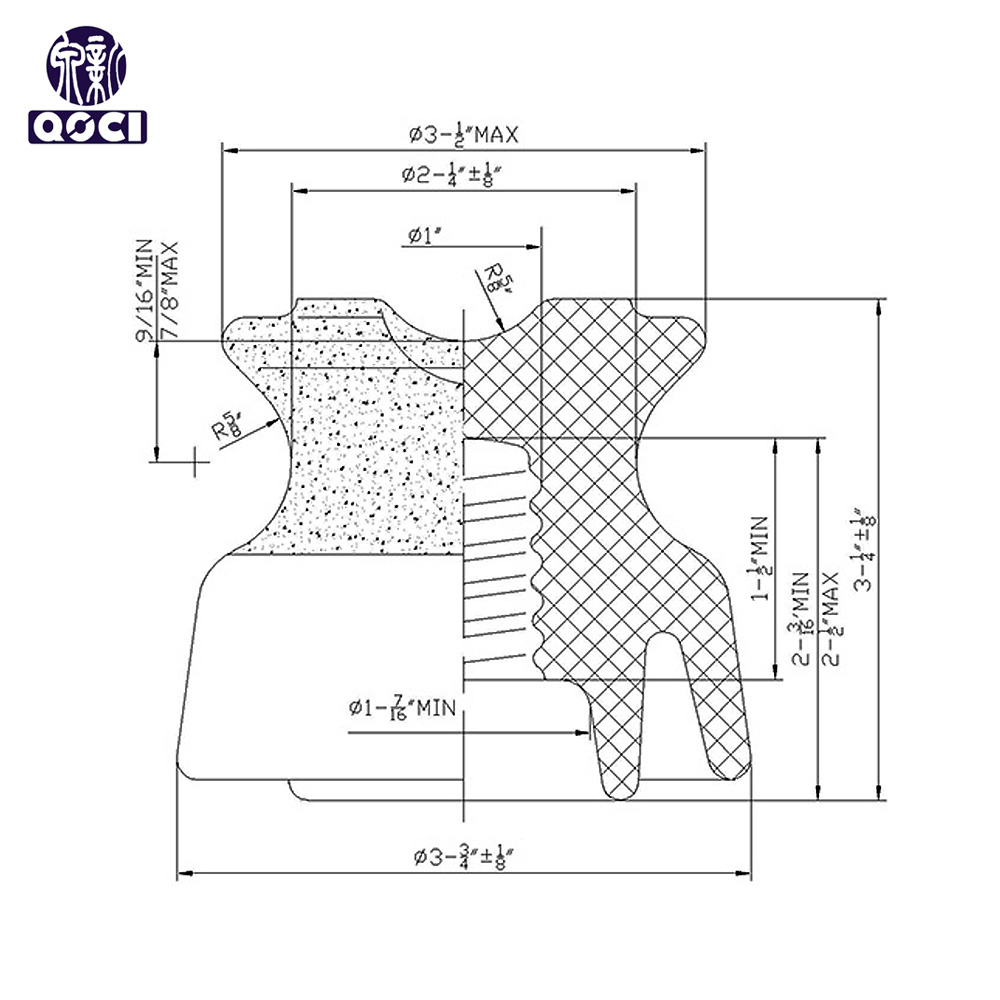

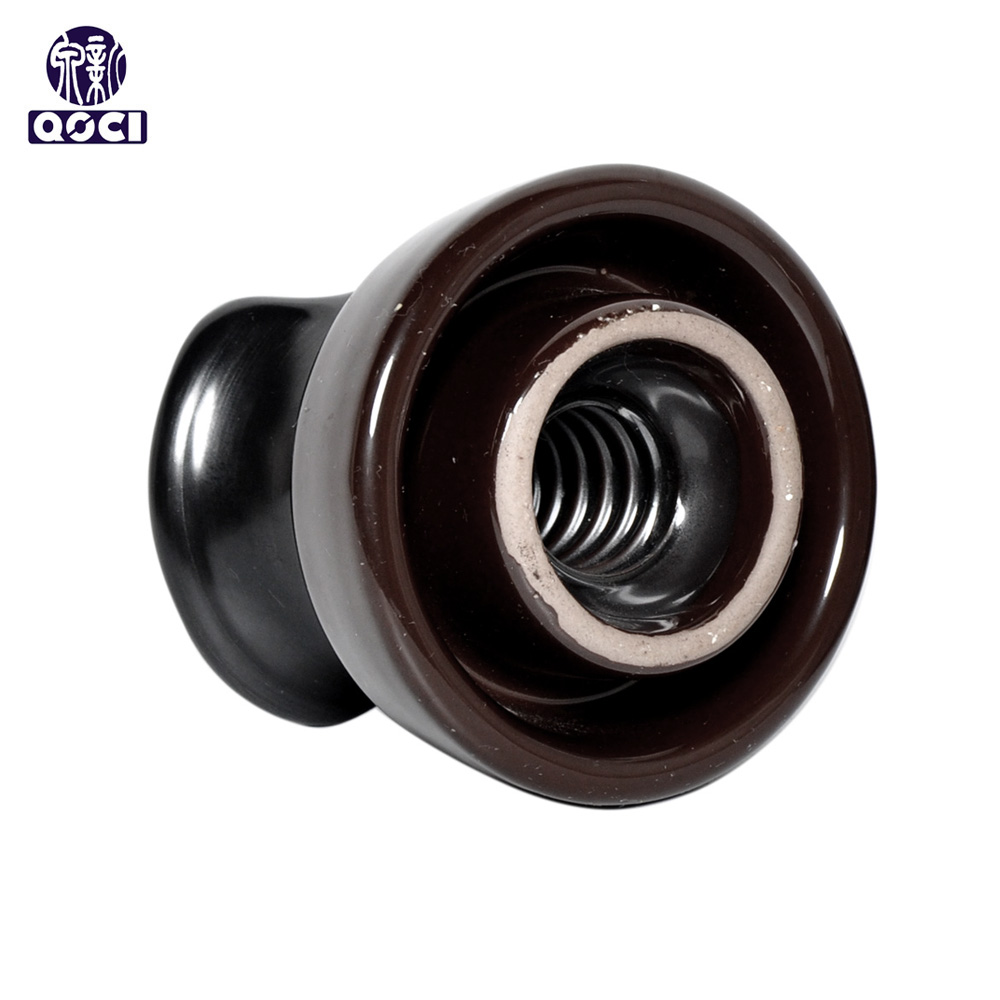

ANSI 55-2 Porcelain Pin Type Insulator

Spacing (S)

3 ¹/₄  inch

83 mm

Diameter (D)

3 ³/₄ inch

95 mm

Leakage distance (C/D)

5 inch

127 mm

Dry arcing distance：

3 ³/₈  inch

86 mm

4 inch

102 mm

Combined M&E strength:

2,500 lb

11.1 kN

Low frequency dry flashover voltage:

45 kV

Low frequency wet flashover voltage:

25 kV

Critical impulse flashover voltage, positive:

70 kV

Critical impulse flashover voltage, negative:

85 kV

Low frequency puncture voltage:

70 kV

Type application voltage

7.2 kV

RIV test voltage rms to ground

Maximum RIV at 1000 kHz

5 kV

50 μV

Corona visual lest P/C

Approx. net weight per unit

Carton Quantity

Pallet Quantity
