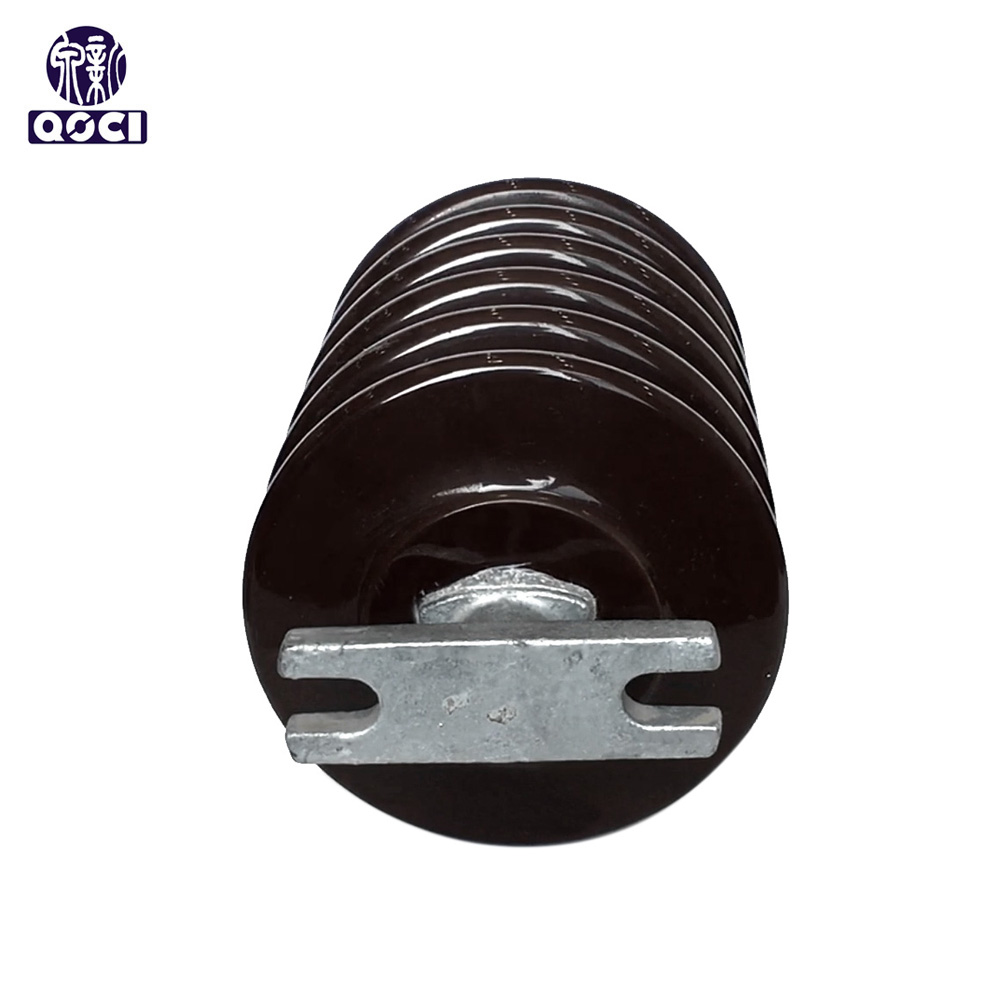

P-70 (6 sheds)post insulator
Dimensional data
Spacing (S) | 254mm |
Diameter (D) | 140mm |
Creepage Distance (C/D) | 500mm |
Mechanical values
Cantilever strength: | 3.46kN |
Electrical ratings
Low frequency wet flashover voltage: | 70kV |
Critical impulse flashover voltage: | 140kV |
Industry Standard(s)
Tests and dimensional tolerances are in accordance with IEC60168.

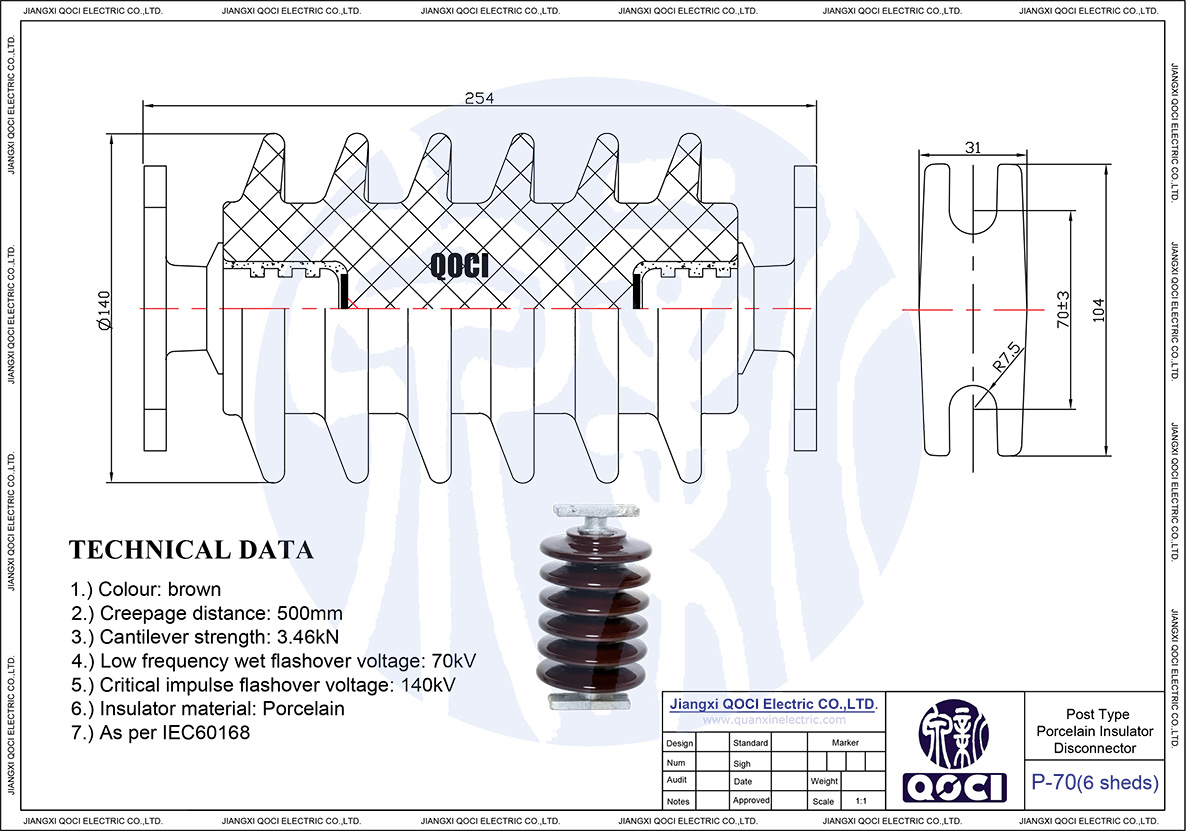

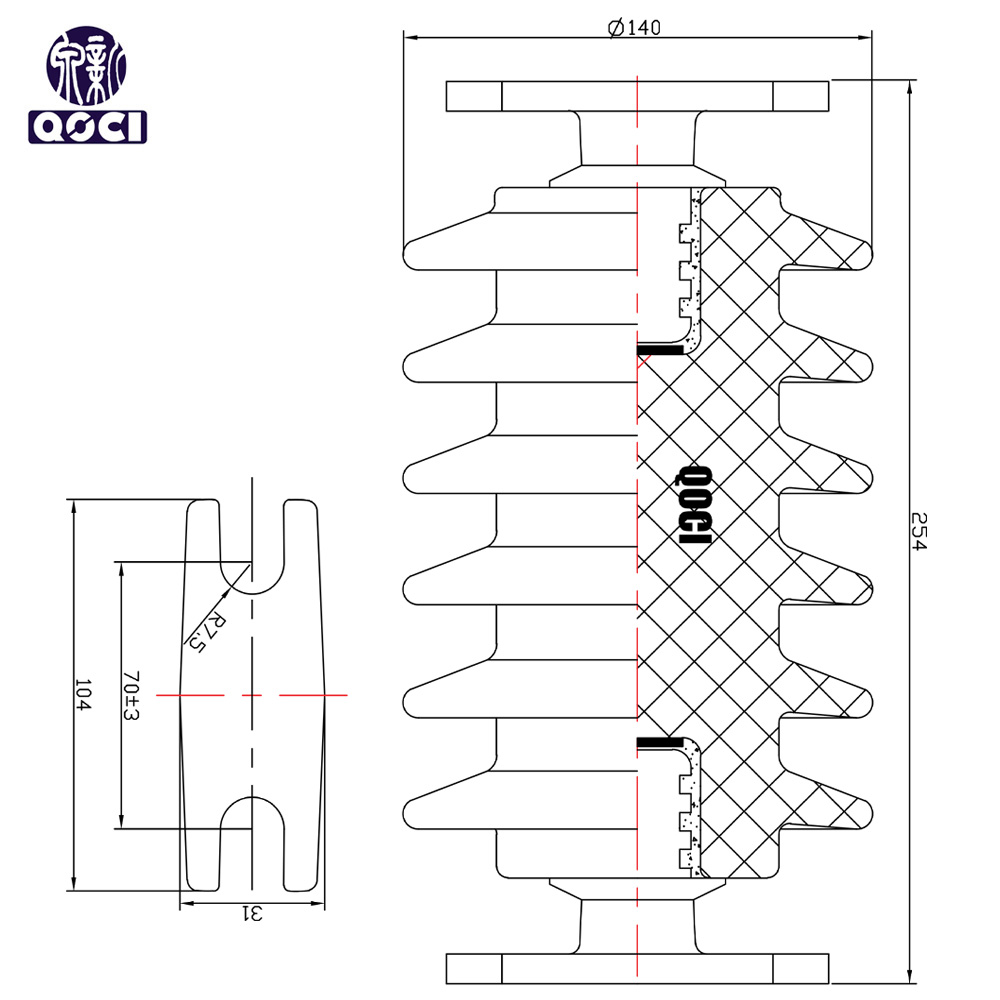

Drawing
