ANSI 54-3Porcelain Stay Insulators
Video

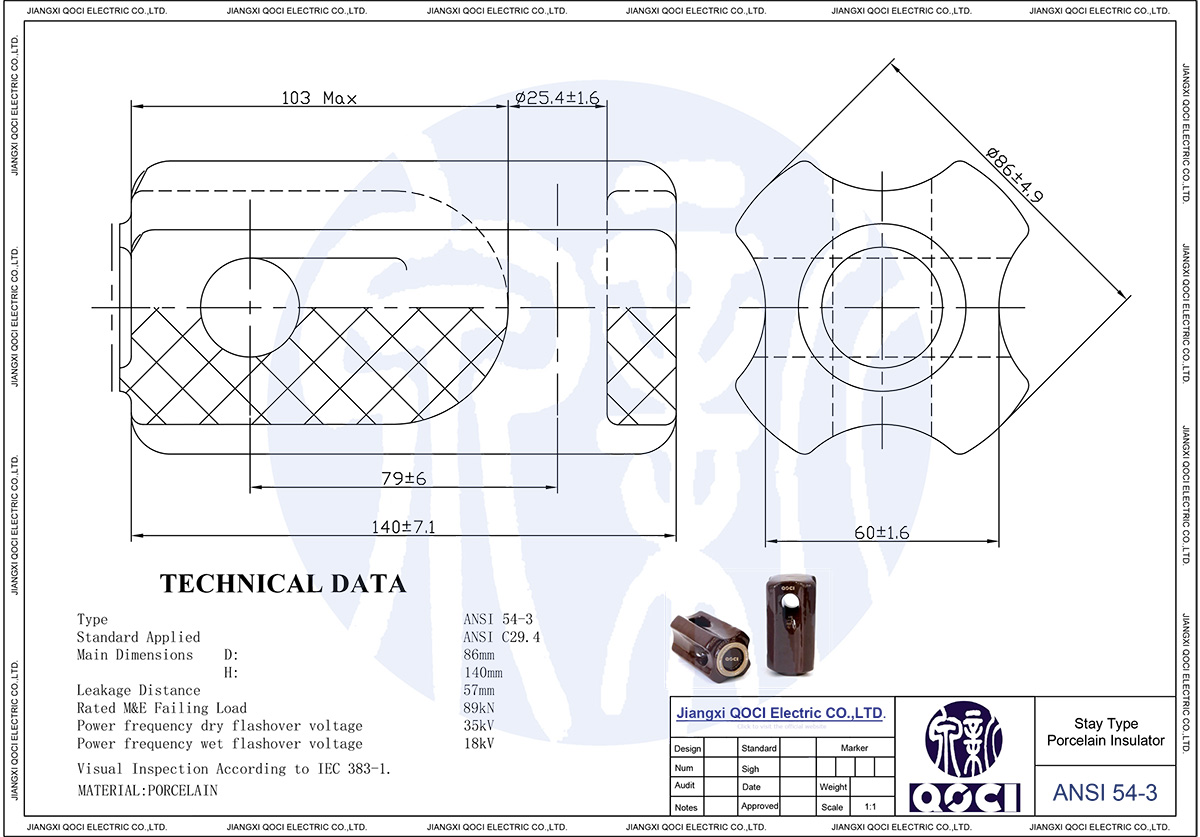

Product drawing
Product parameters
| Stay insulators | |||||
| ANSI Class | 54-1 | 54-2 | 54-3 | 54-4 | |
| Dimensions | |||||
| Max Diameter | mm | 64 | 73 | 86 | 97 |
| Height | mm | 89 | 108 | 140 | 172 |
| Creepage distance | mm | 41 | 48 | 57 | 76 |
| Mechanical Values | |||||
| Cantilever strength | kn | 45 | 55 | 91 | 91 |
| Electrical Values | |||||
| Low frequency dry flashover voltage | kv | 25 | 30 | 35 | 40 |
| Low frequency wet flashover voltage | kv | 12 | 15 | 18 | 23 |
| Packing and Shipping Data | |||||
| Net weight,approximate | kg | 0.50 | 0.65 | 1.20 | 1.85 |

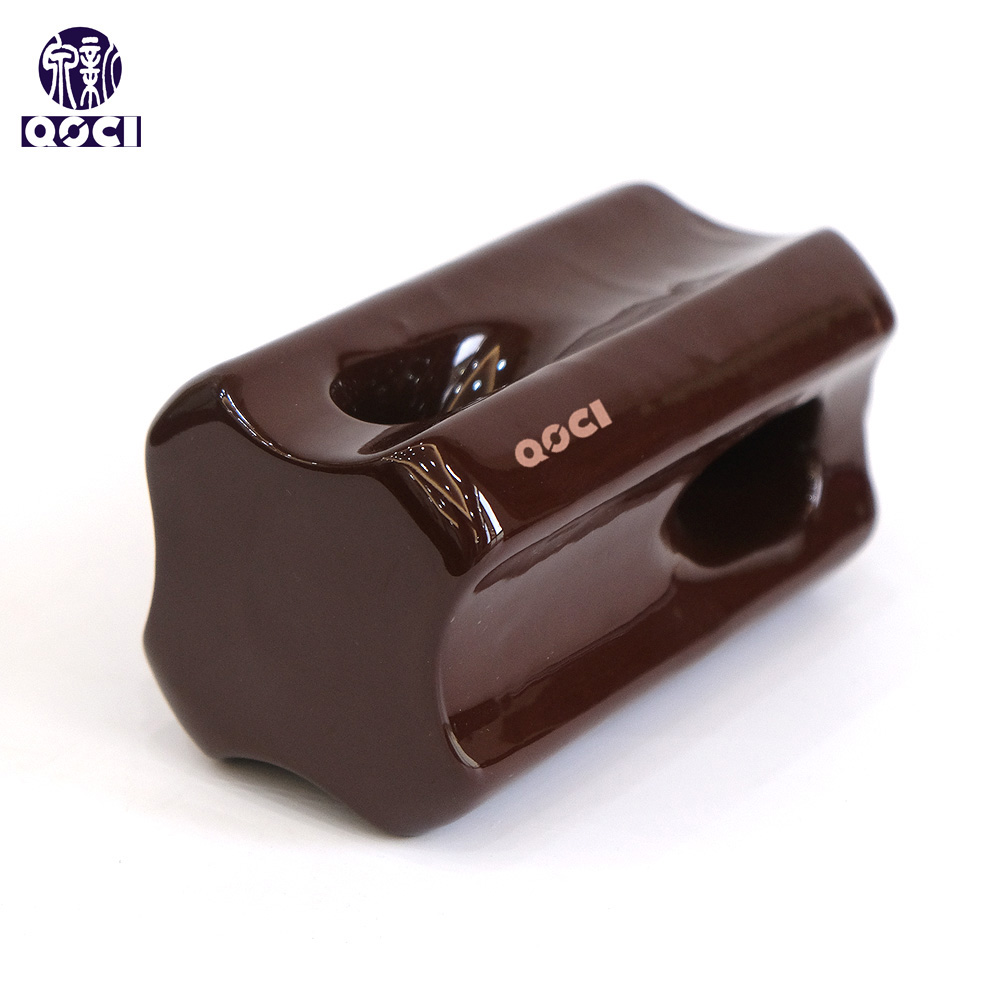

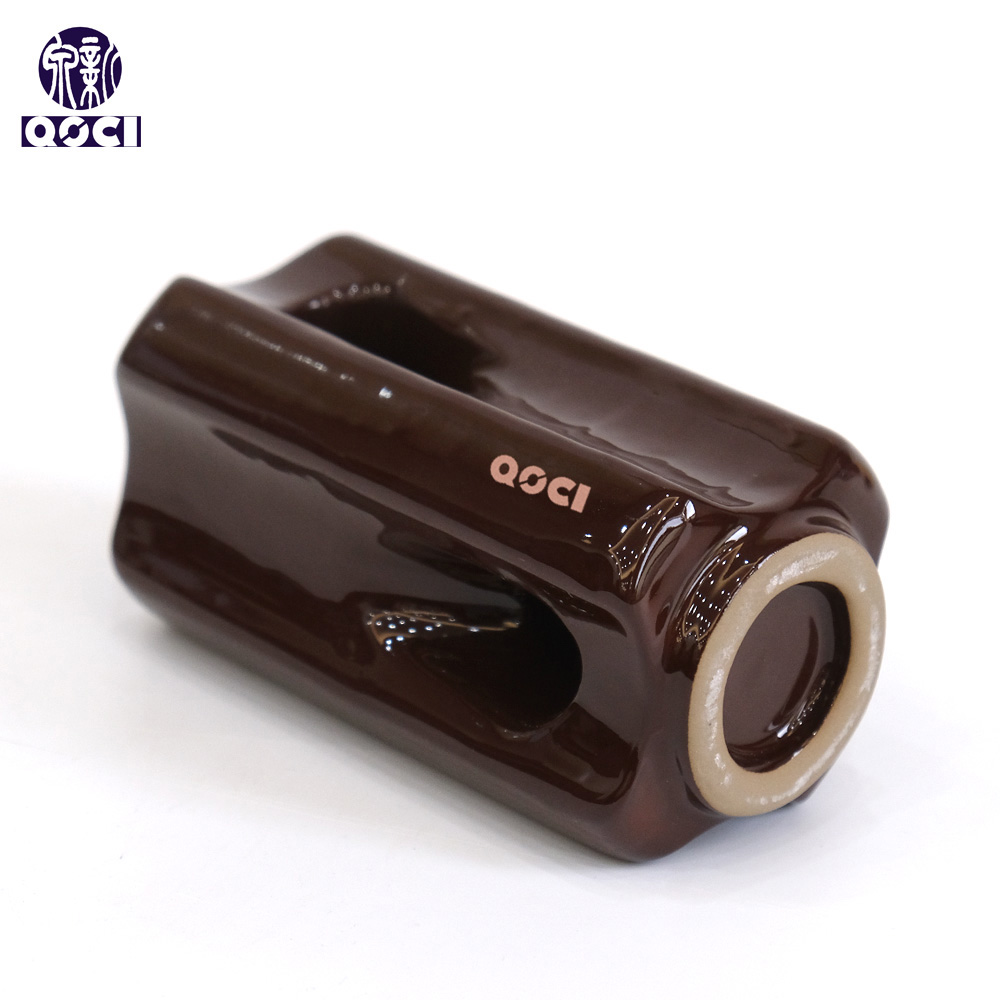

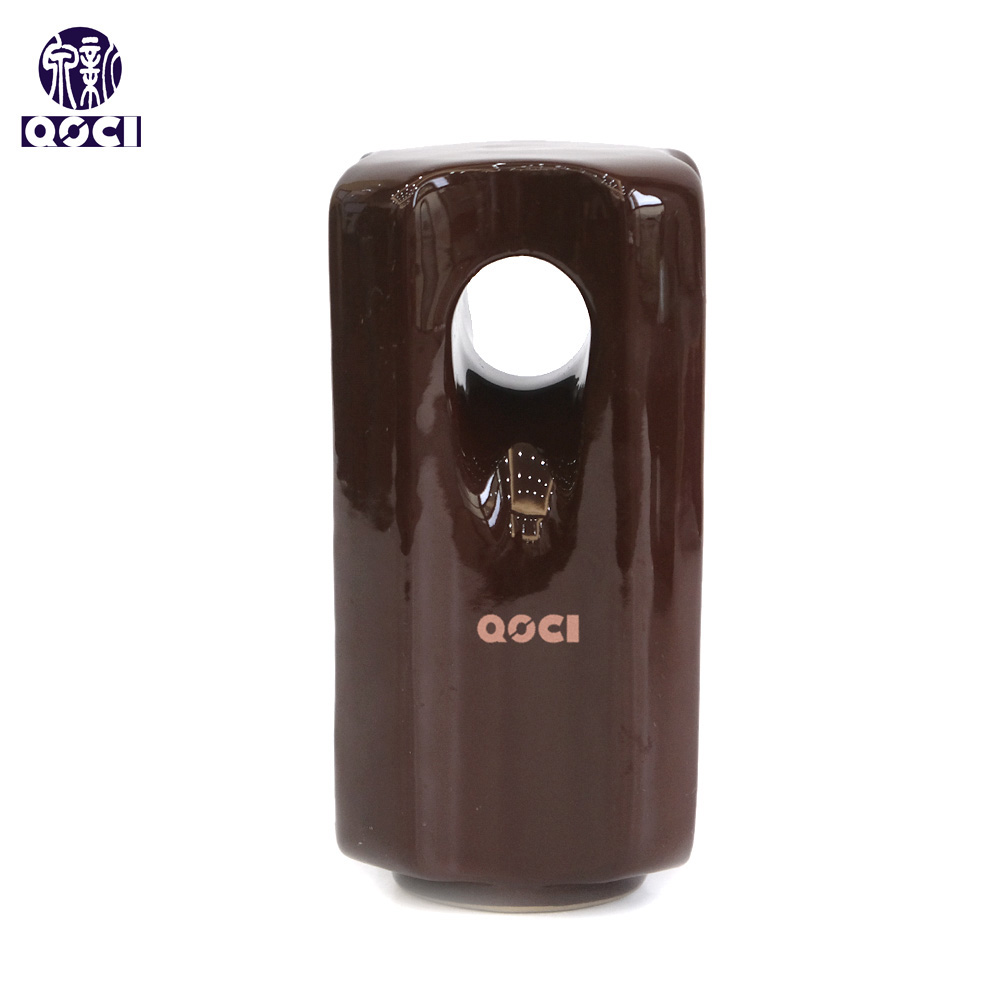

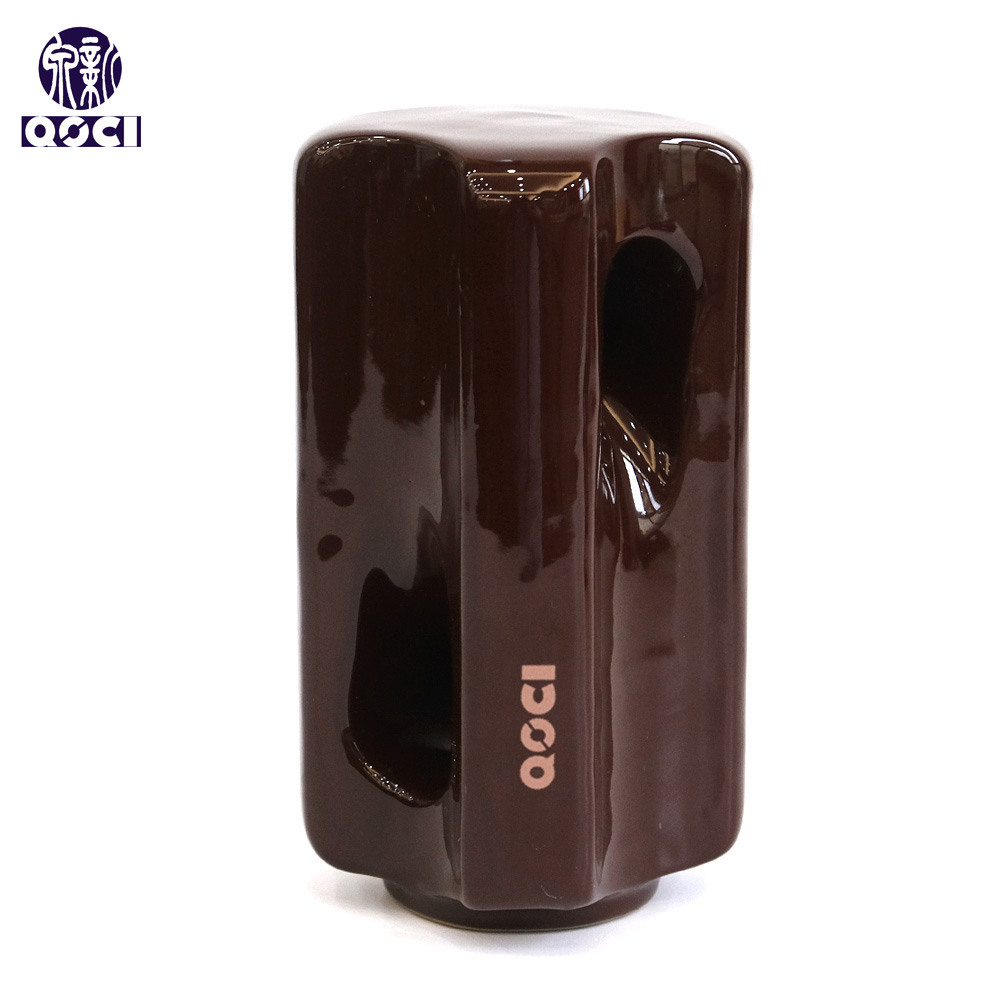

Detailed Photos
