U70C Ground-wires Type Suspension Glass Insulator
Product Information

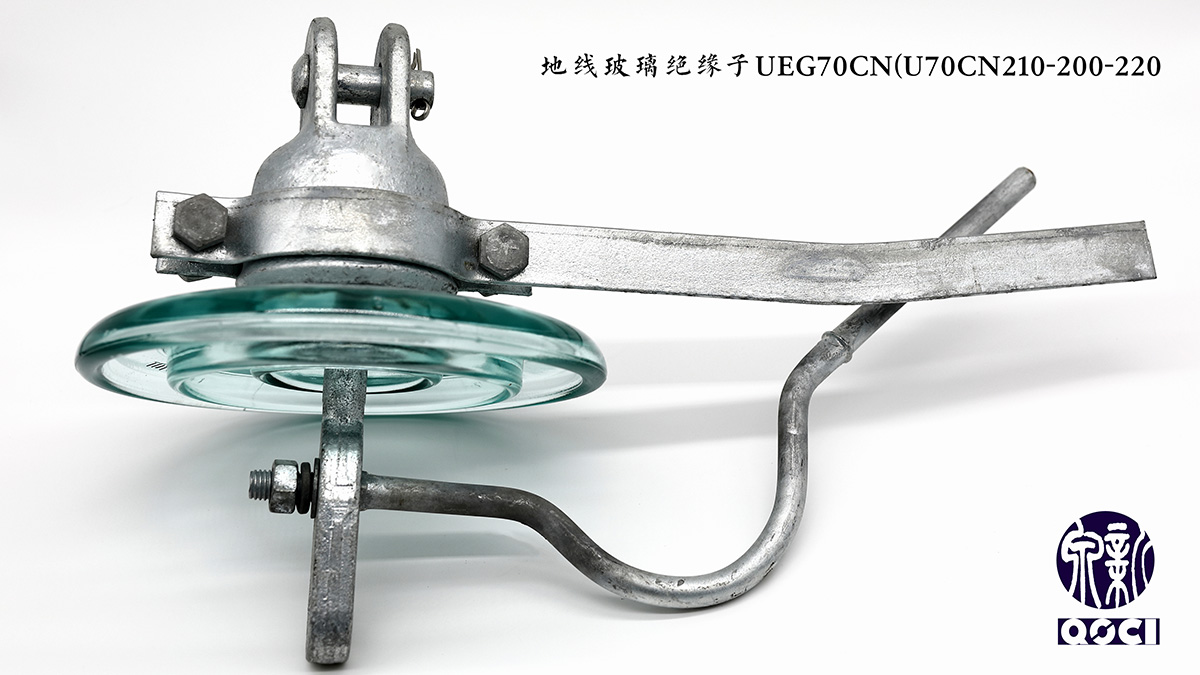

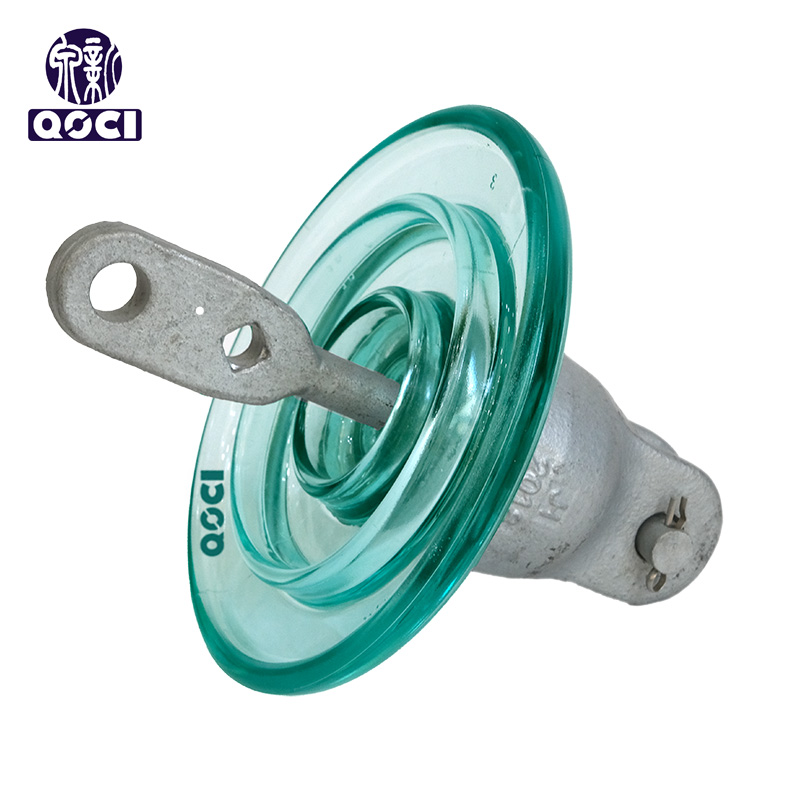

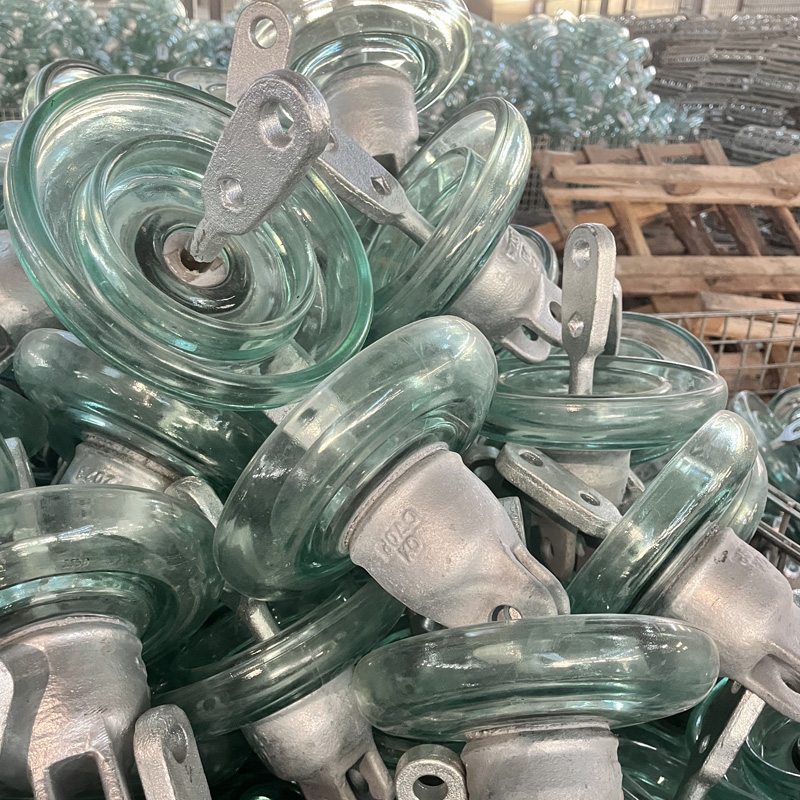

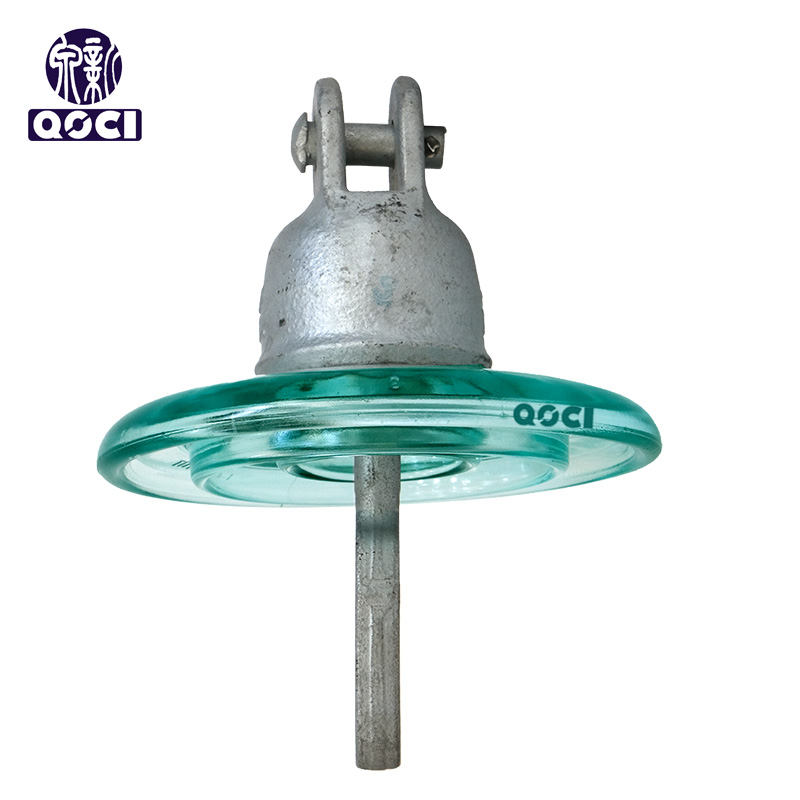

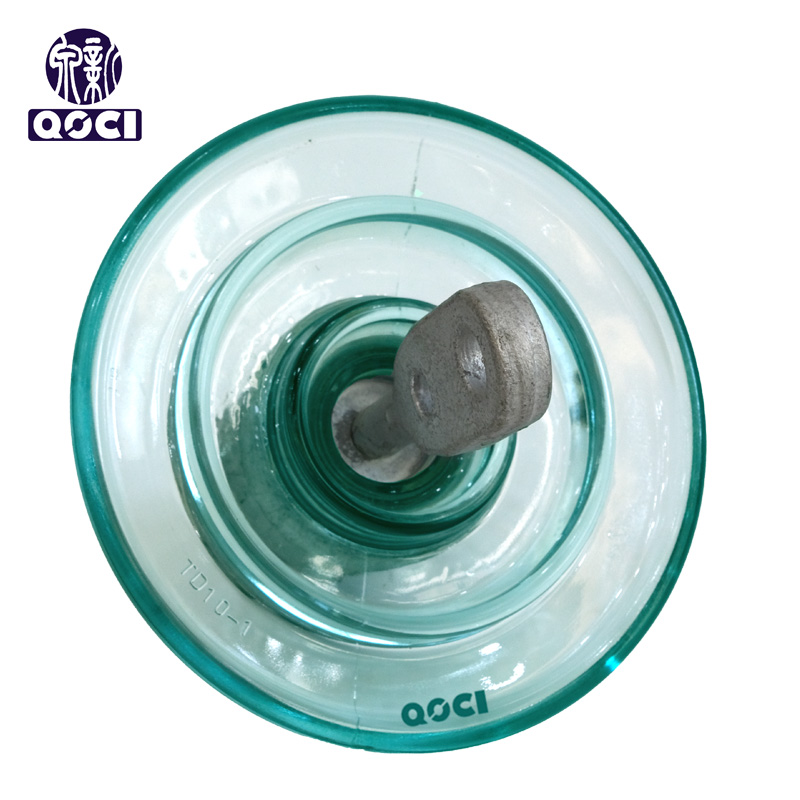

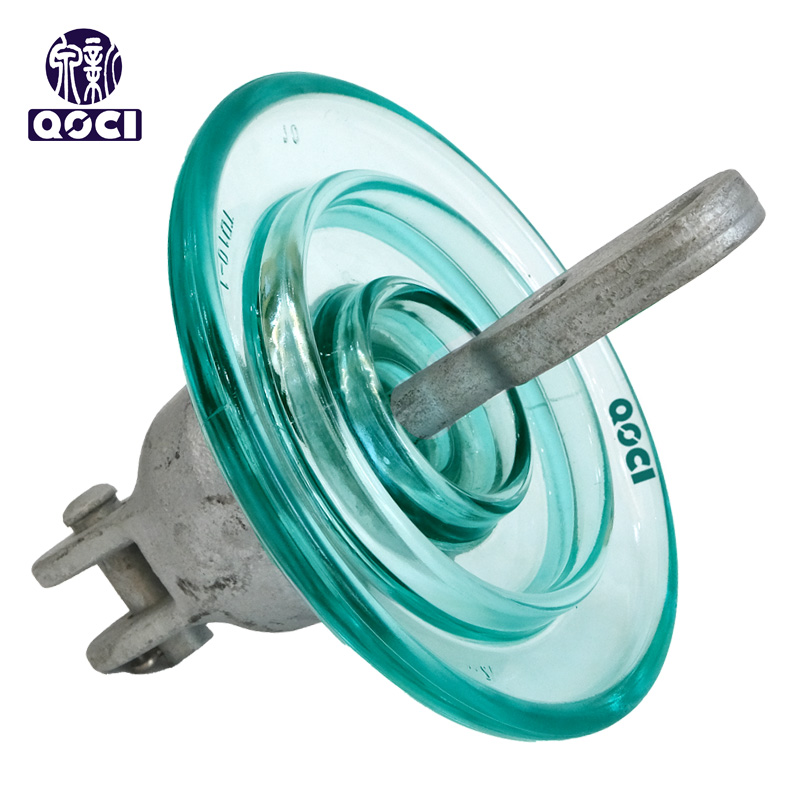

Product drawing
Product parameters
| IEC designation | Minimum Mechanical Failing Load | Nominal Diameter | Nominal Spacing | Creepage Distance | Socket coupling | Suspending modes | Power Frequency Discharge Voltage With Gap distance 20mm | Extinguished Arc Current at Power Frequency Refresh Voltage 2500V with gap distance 15mm | Electrode Performance of Withstand Arc Current (min) | Weight | ||||
| D | H | L | Max | Min | Inductance current | Capacitance Current | Power frequency current | Time | Frequnence | |||||
| kn | mm | mm | mm | mm | kV | kV | A | A | kA | S | KG | |||
| U70C | 70 | 200 | 210 | 220 | 16C | Suspension | 30 | 8 | 35 | 20 | 10 | 0.2 | 2 | 4.5 |
| U70CN | 70 | 200 | 210 | 220 | 16C | Tension | 30 | 8 | 35 | 20 | 10 | 0.2 | 2 | 4.5 |
| U100C | 100 | 200 | 210 | 220 | 16C | Suspension | 30 | 8 | 35 | 20 | 10 | 0.2 | 2 | 4.5 |
| U100CN | 100 | 200 | 210 | 220 | 16C | Tension | 30 | 8 | 35 | 20 | 10 | 0.2 | 2 | 4.5 |
| U120C | 120 | 200 | 210 | 220 | 16C | Suspension | 30 | 8 | 35 | 20 | 10 | 0.2 | 2 | 4.5 |
| U120CN | 120 | 200 | 210 | 220 | 16C | Tension | 30 | 8 | 35 | 20 | 10 | 0.2 | 2 | 4.5 |
