24KV Withdrawable Metal-clad Enclosed Switchgear Distribution Cabinet KYN28-24KV
KYN28-24KV indoor metal-enclosed switchgear is designed for three-phase AC 50/60Hz power systems with a rated voltage of 24kV and rated current up to 3150A. It is widely used for power transmission of small and medium-sized generators in power plants, power receiving and distribution in substations, power supply systems in industrial and mining enterprises, as well as starting and control of large high-voltage motors. The equipment provides reliable control, protection and real-time monitoring for the entire power network.
Working condition
-
Altitude: ≤ 1000m
-
Ambient temperature: -15°C ~ +40°C, 24-hour average ≤ 35°C
-
Relative humidity: daily average ≤ 95%, monthly average ≤ 90%
-
Free from corrosive gases, flammable gases and serious pollution
-
No frequent strong vibration; applicable for seismic intensity ≤ 8 degree

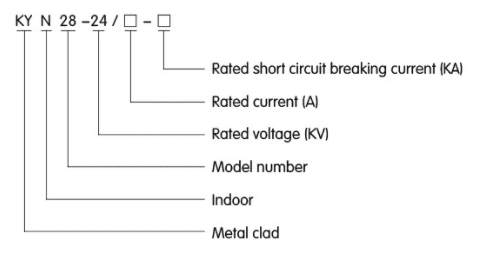

Product difinition
KYN28-24KV is an indoor armored movable AC metal-enclosed switchgear, integrating switching, protection, control and monitoring functions. It features stable performance, compact structure, easy maintenance and high compatibility, widely applied in power plants, distribution stations, industrial and mining enterprises and infrastructure projects.

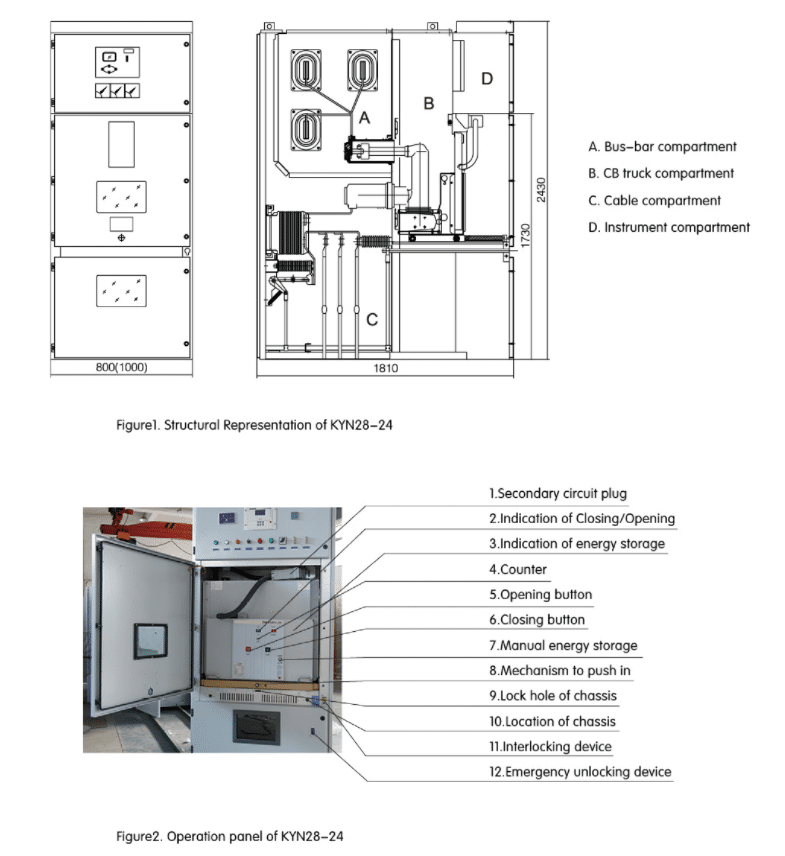

Drawing
| Item | Unit | Data | |
| Rated Voltage | KV | 24 | |
| Rated Current | A | 630/1250/1600/2000/2500/3150 | |
| Rated Frequency | Hz | 50/60 | |
| Insulation level | Rated power-frequency withstand voltage(1min) | KV | 65/79 (to earth/phase to phase) |
| Rated lightening impulse withstand voltage | KV | 125/145 (to earth/phase to phase) | |
| Rated short time withstand current | KA | 20/25/31.5 | |
| 4s Short-time withstand current (rms.) | KA | 20/25/31.5 | |
| Peak withstand current (peak.) | KA | 50/63/80 | |
| Cabinet Protection level | IP3X | ||
Outline dimension(mm)
| Width | Depth | Height |
| 800 | 1810 | 2430 |
| 1000 | 1810 | 2430 |
