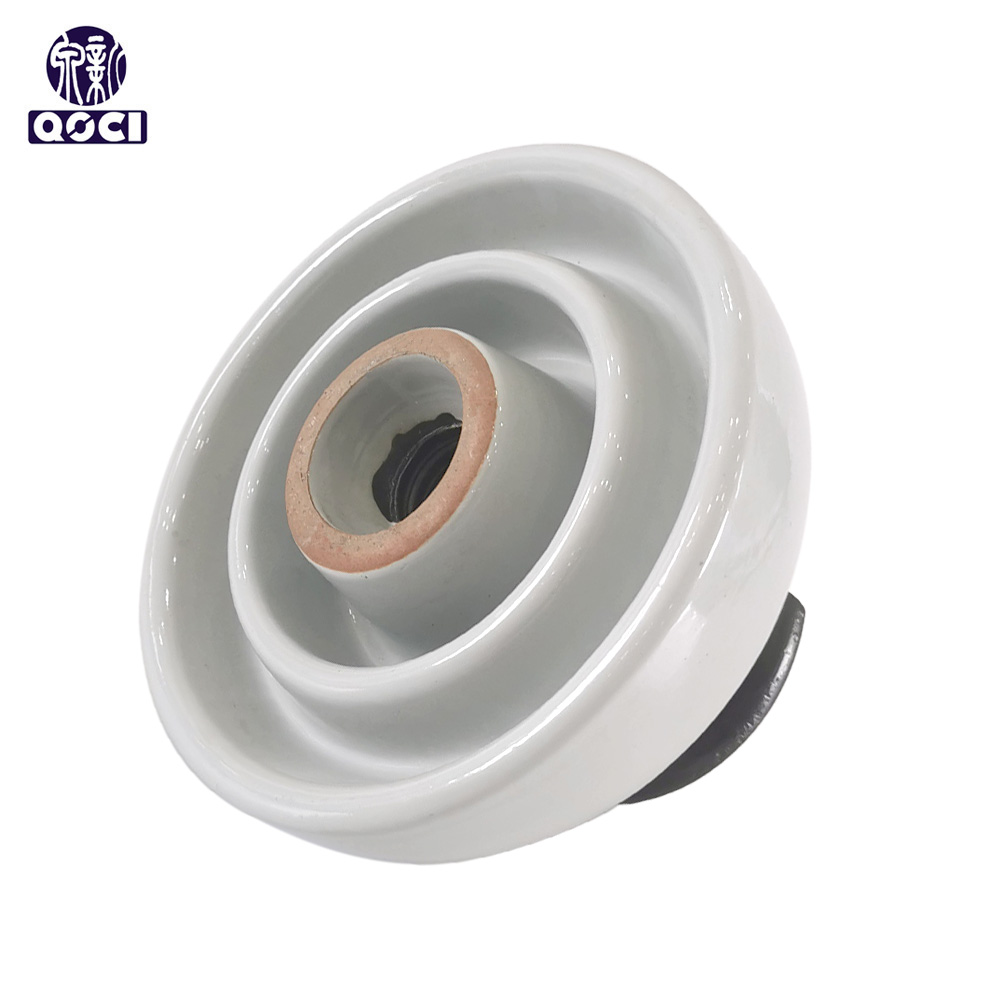

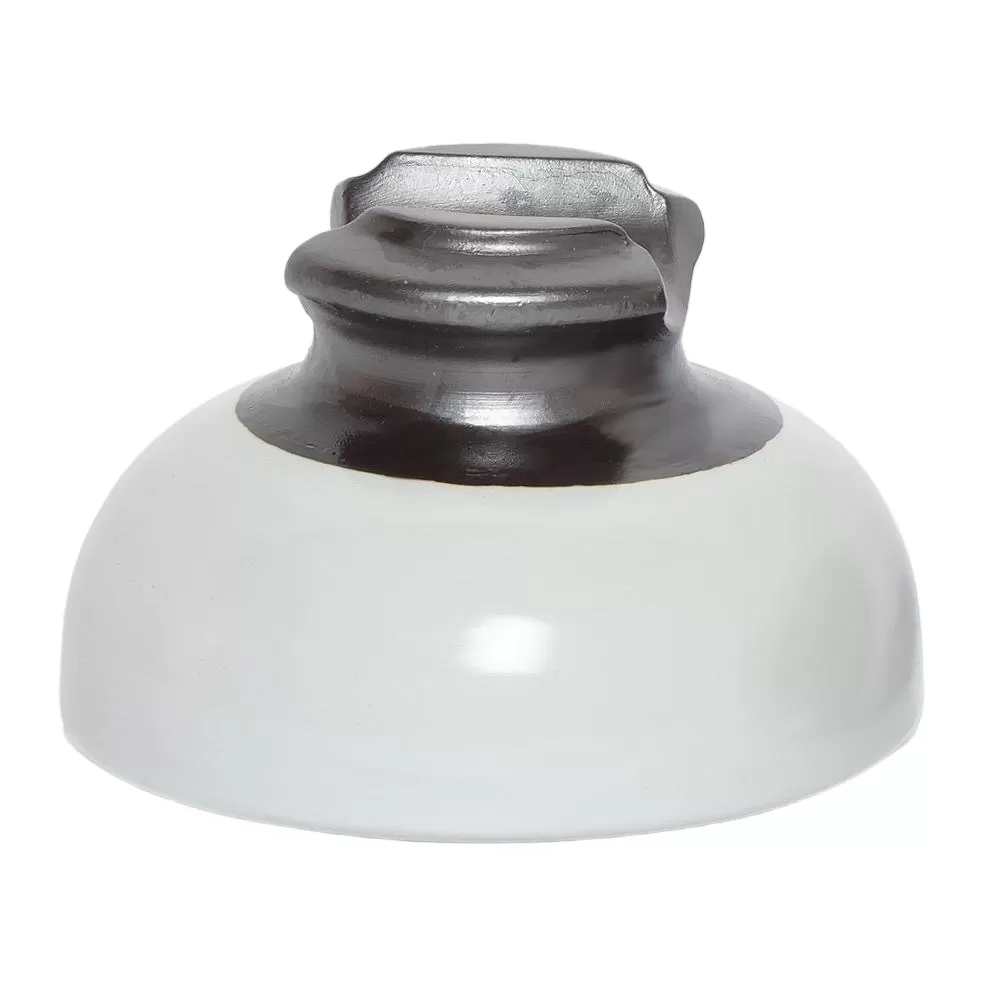

ANSI 55-6 Pin Type Porcelain Insulator

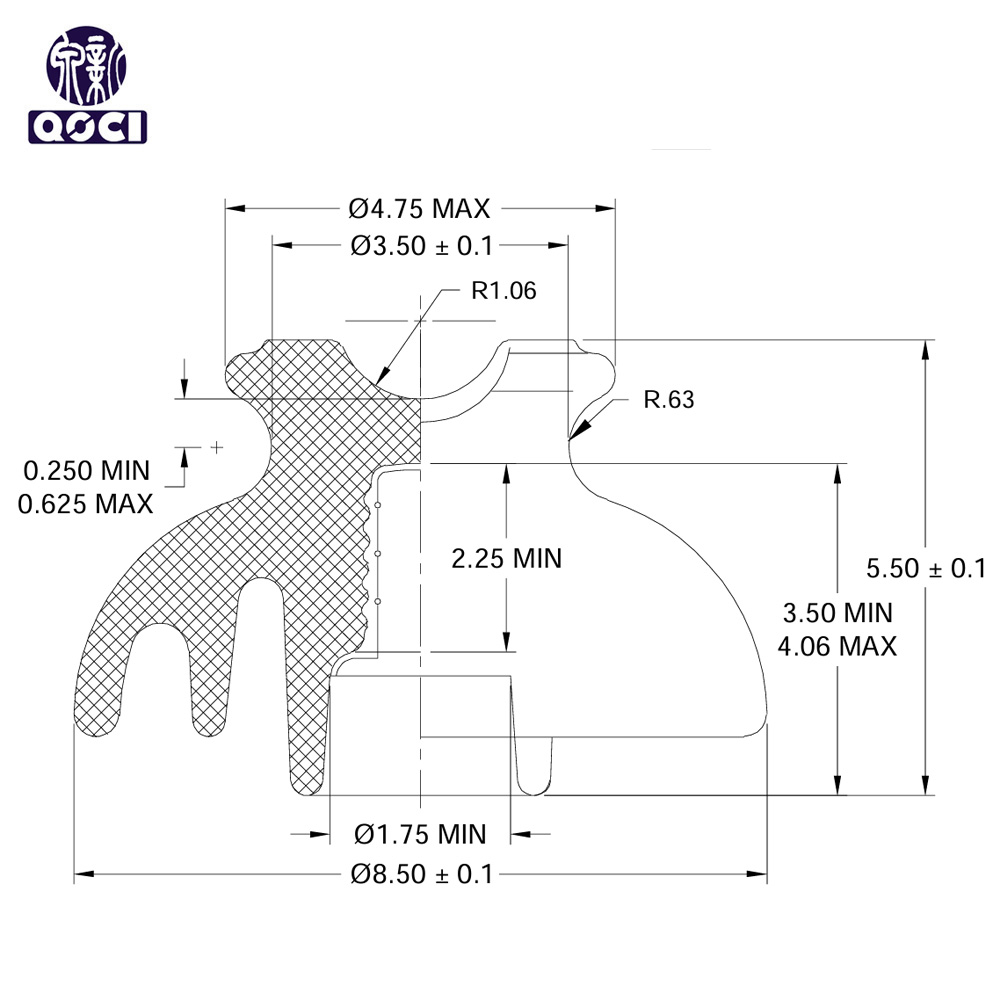

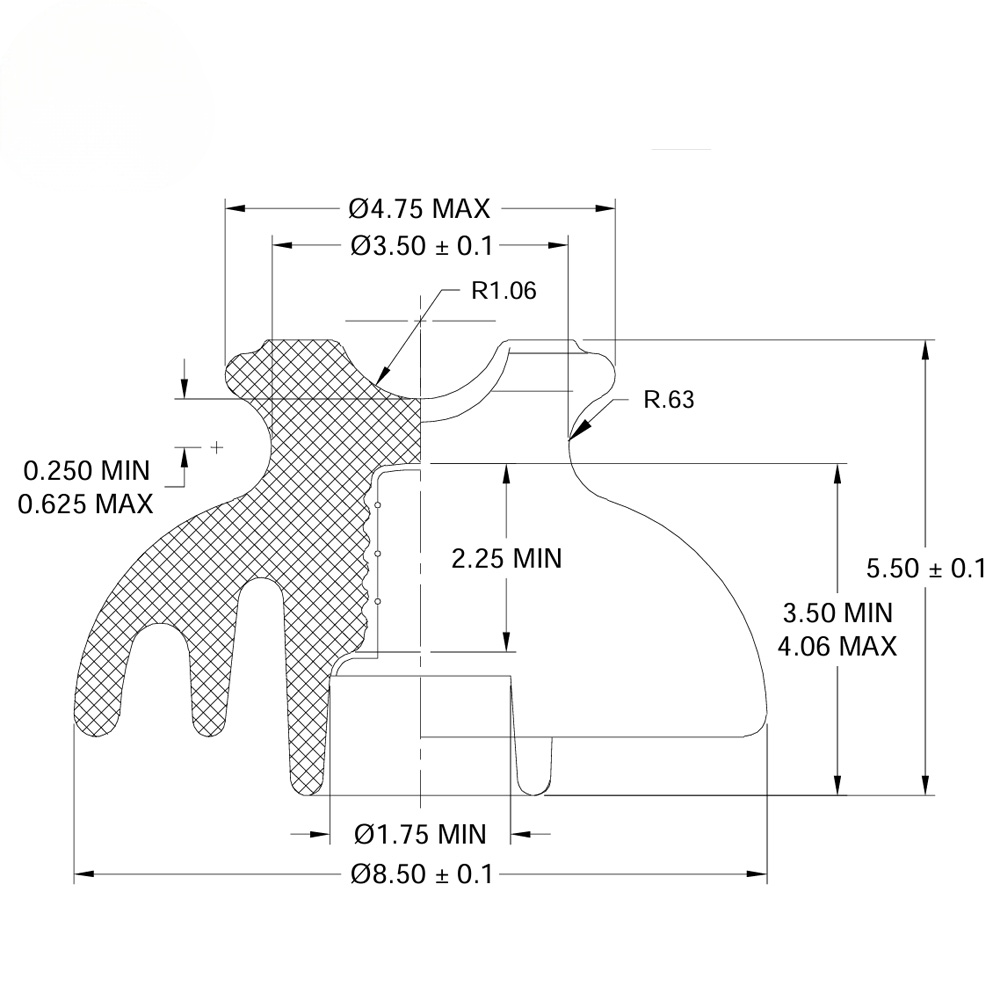

Dimensional data
Spacing (S) | 8 1/2 inch 140 mm |
Diameter (D) | 8 3/8 inch 213 mm |
Leakage distance (C/D) | 15 inch 381 mm |
Dry arcing distance： | 8 inch 203 mm |
| Minimum pin height: | 7 1/2 inch 190 mm |
Mechanical values
Combined M&E strength: | 3,000 lb 13.3 kN |
Mechanical values
Combined M&E strength: | 3,000 lb 13.3 kN |
Electrical Values
Low frequency dry flashover voltage: | 100 kV |
Low frequency wet flashover voltage: | 50 kV |
Critical impulse flashover voltage, positive: | 150 kV |
Critical impulse flashover voltage, negative: | 170 kV |
Low frequency puncture voltage: | 135 kV |
Type application voltage: | 23 kV |
Radio-influence Voltage
RIV test voltage rms to ground Maximum RIV at 1000 kHz | 22 kV 100 μV |
Corona visual lest P/C | 18/22 KV |
Packing information
Approx. net weight per unit | 9.1 lb 4.1 kg |
Pallet Quantity | 144 |
Industry Standard(s)
Manufactured according to ANSI C29.5
