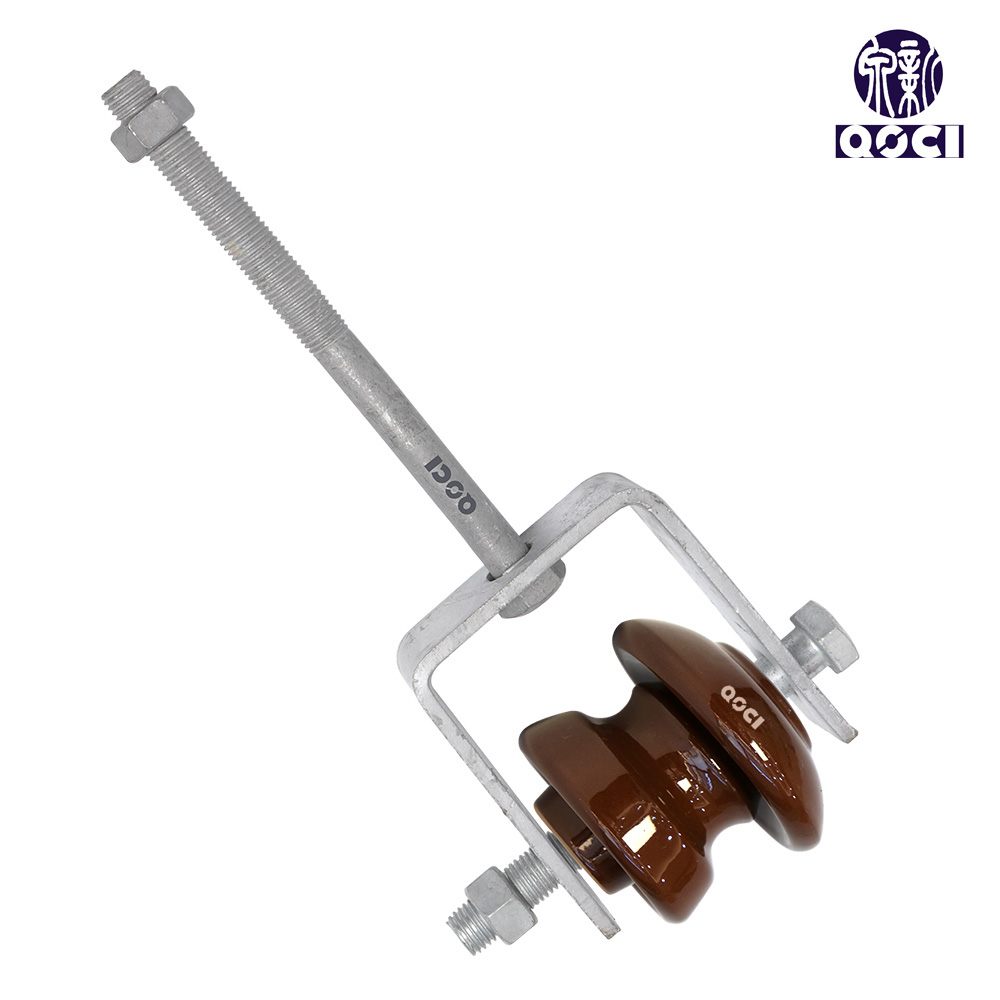

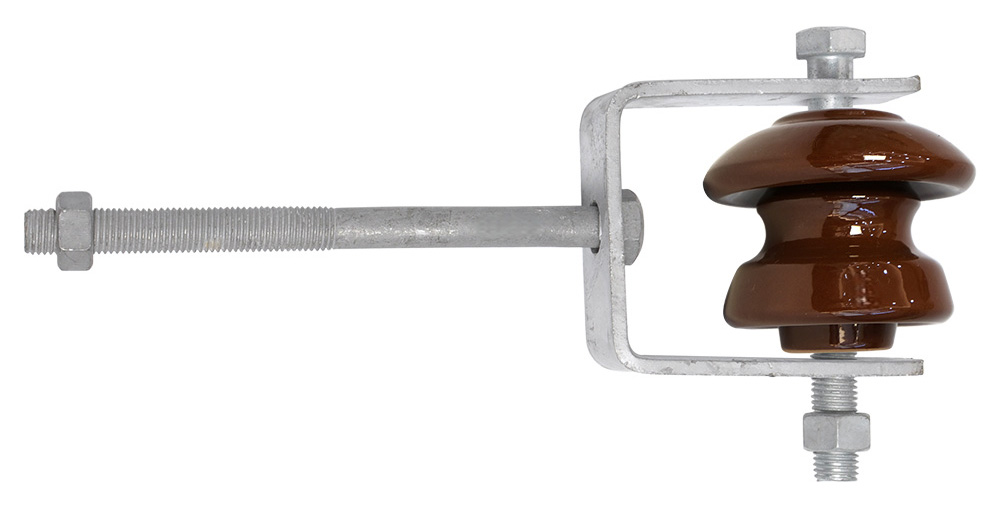

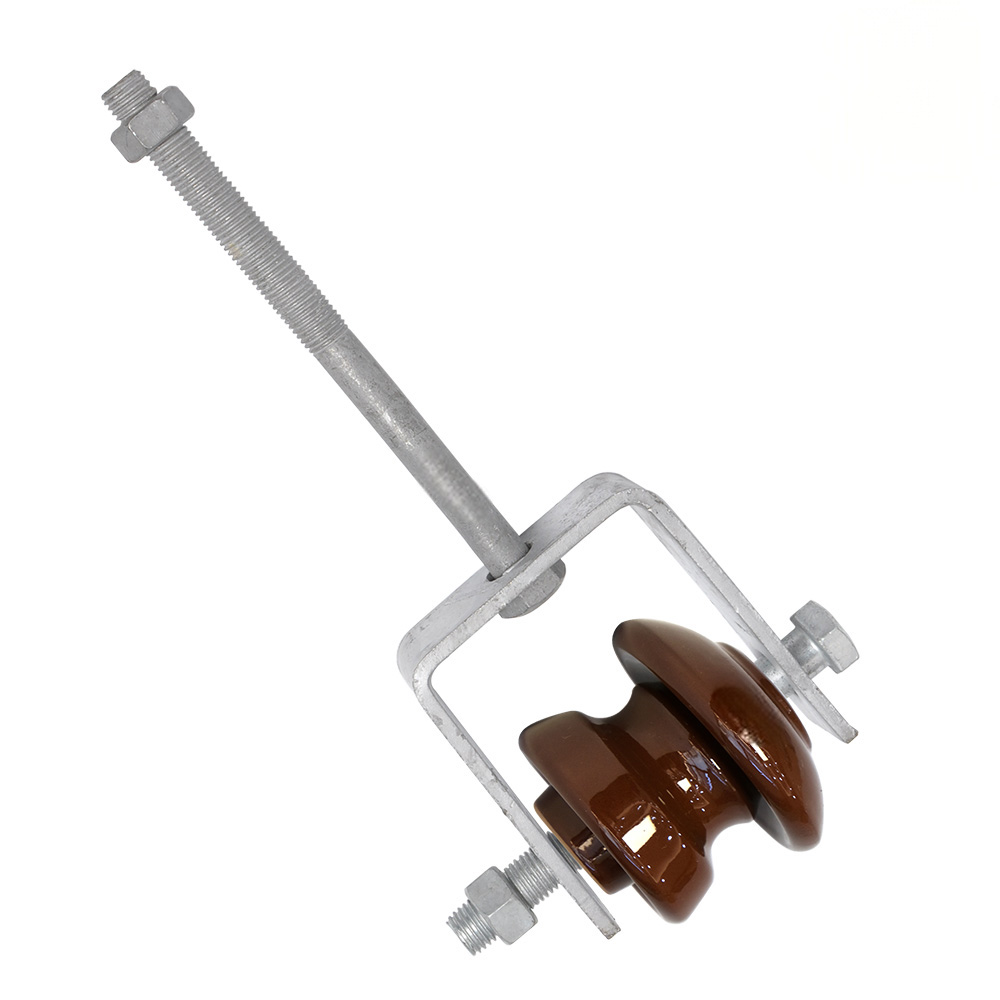

ANSI Standard Shackle Insulator ED-2b with D Iron for Low Voltage Lines
Product parameters
| Shackle insulators | |||
| Type | ED2-2B | ED5-2B | |
| Dimensions | |||
| Leakage distance | mm | 76 | 76 |
| Leakage distance | mm | 90 | 95 |
| Leakage distance | mm | 64 | 66 |
| Mechanical Values | |||
| Transverse Strength | kn | 13.5 | 15 |
| Electrical Values | |||
| Low frequency dry flashover voltage | kv | 25 | 23 |
| Low frequency wet flashover voltage | kv | 13 | 10 |
| Packing and Shipping Data | |||
| Net weight,approximate | kg | 0.5 | 0.6 |

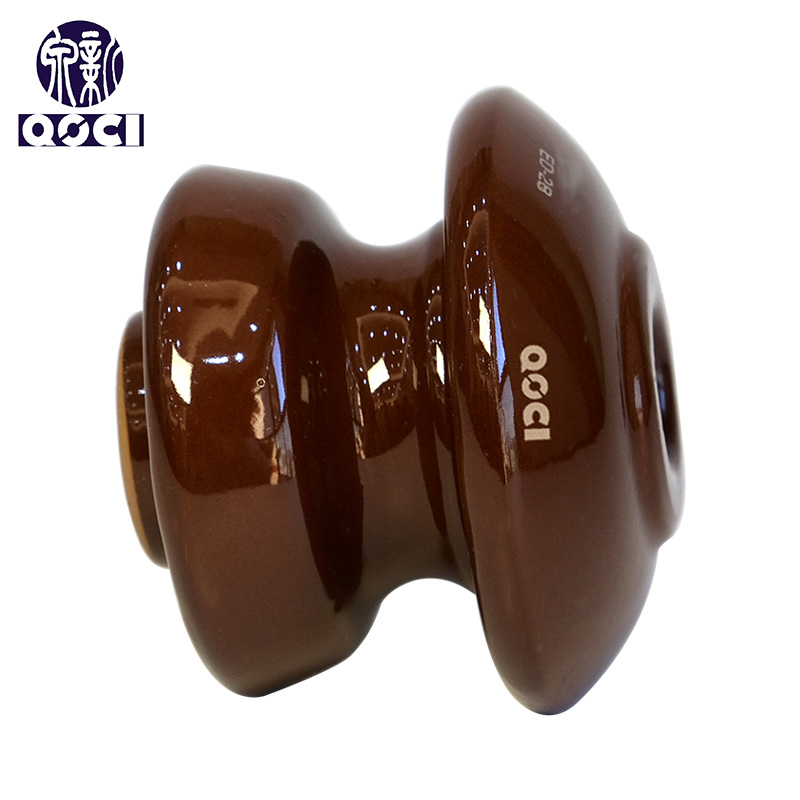

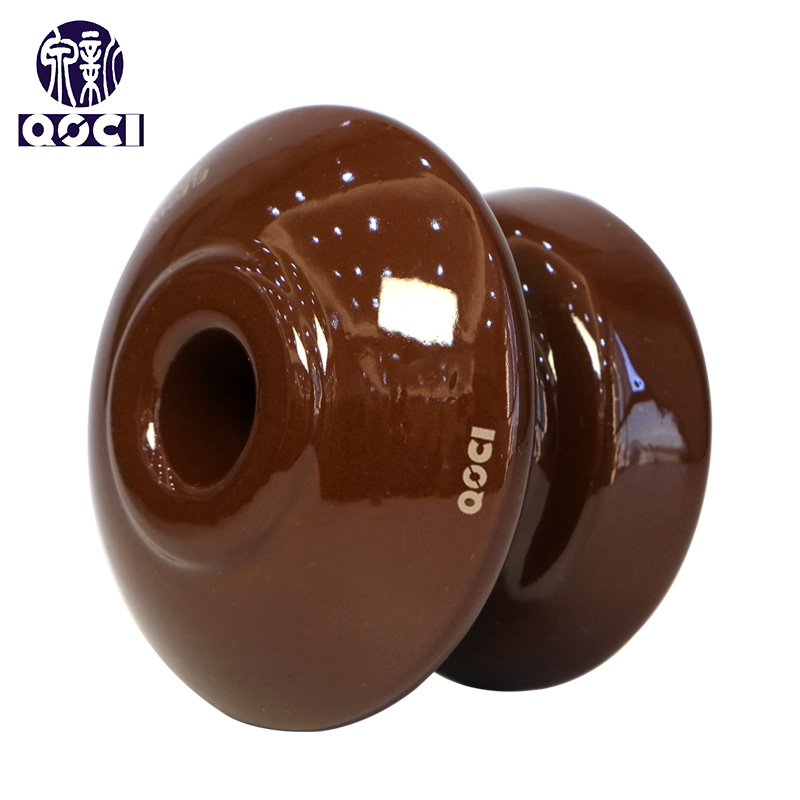

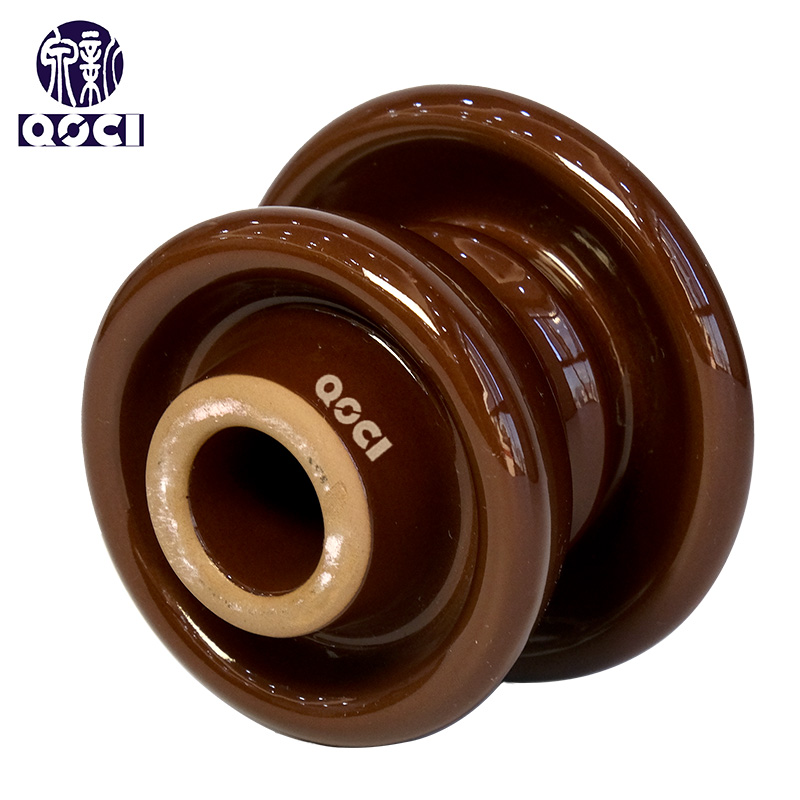

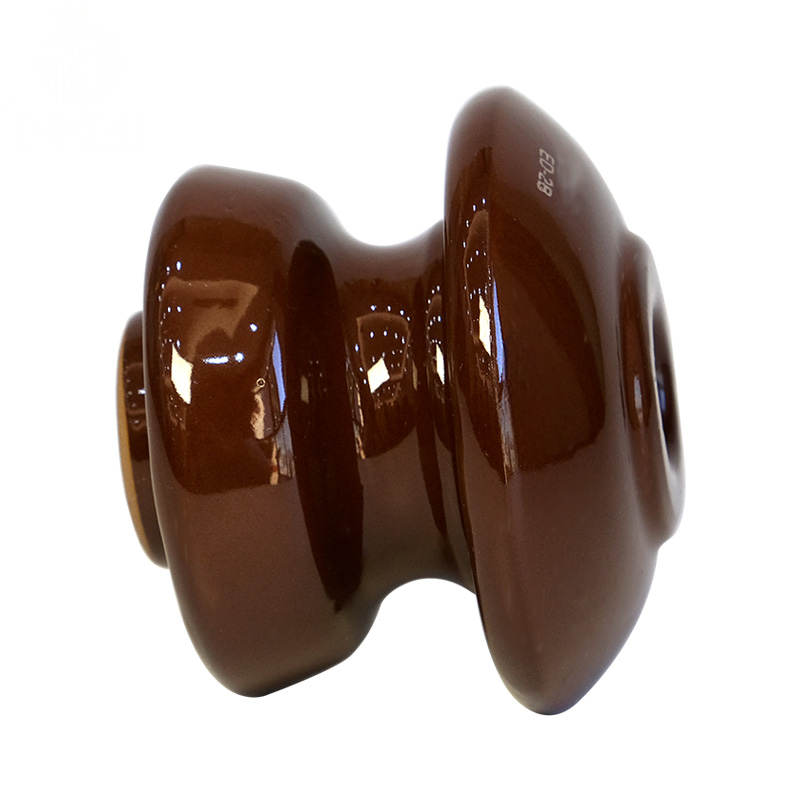

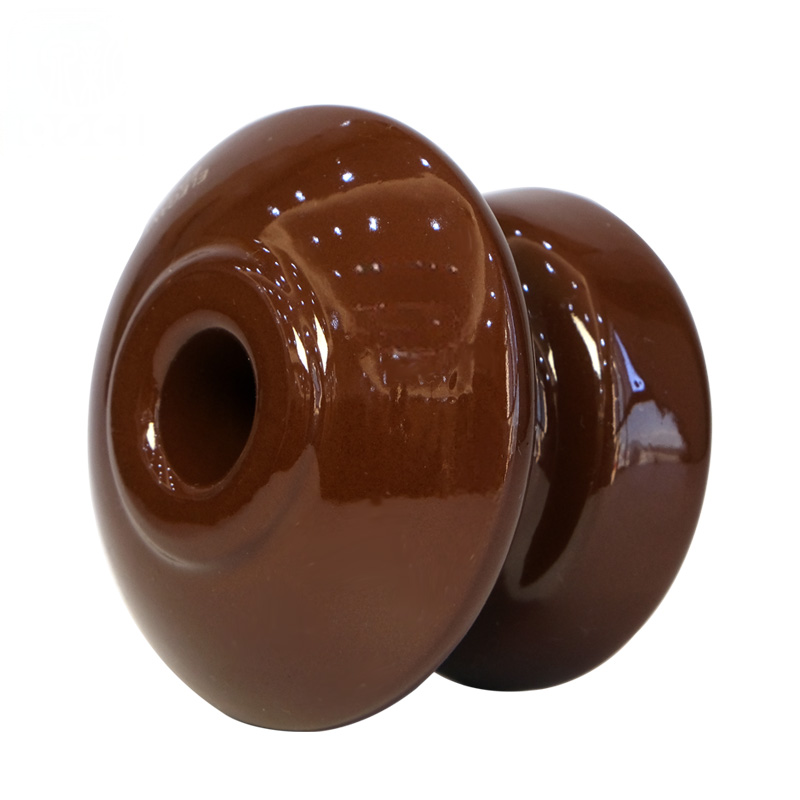

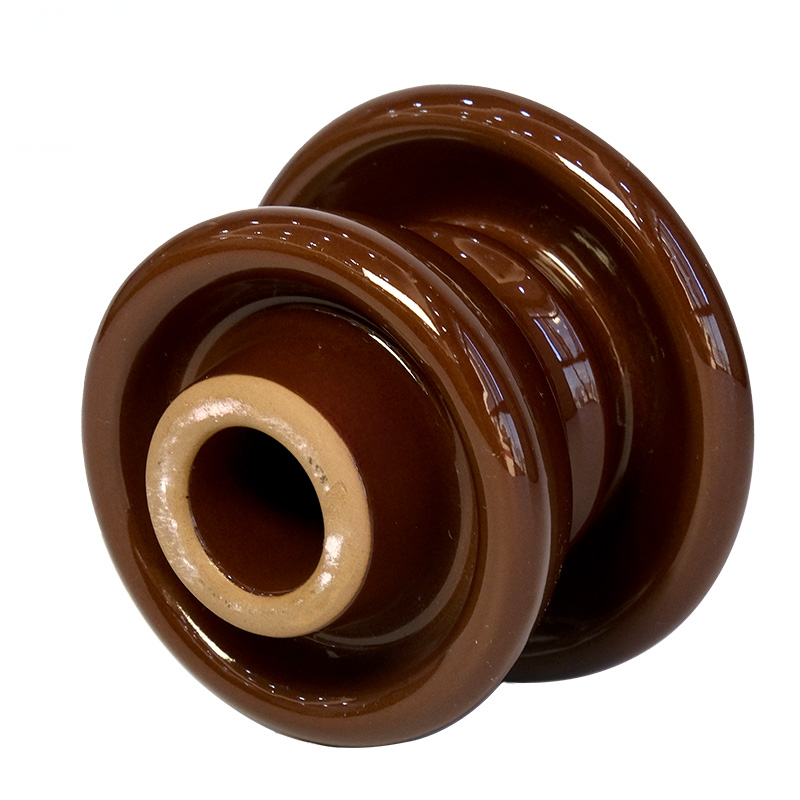

Product Display
