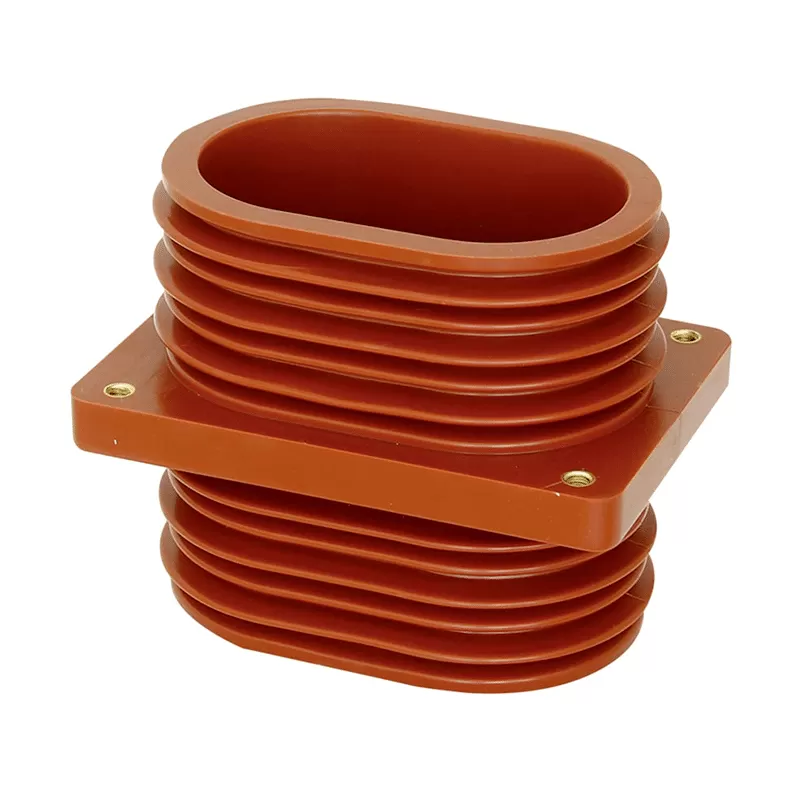

12KV High Voltage Epoxy Resin Through Wall Bushing for Busbar TG4-12-140×200

12KV epoxy resin through wall bushing TG4-12-140x200 for busbars, with high strength, anti-breakdown & pollution flashover resistance.

  • Model: TG4-12-140x200
  • Description: Wall busing is a type of electrical equipment used to connect high-voltage cables to devices such as circuit breakers and transformers. Its main structure includes an inner cylinder, an outer cylinder, an insulating sleeve, a support ring, a support bucket, etc. It has the characteristics of high strength, resistance to breakdown, resistance to pollution flashover, and corrosion resistance.
Contact us
Product Details

Wall bushing uses high-quality insulation materials, which have undergone high-temperature baking and spray painting treatment. Its appearance is smooth and beautiful, waterproof and dustproof, and wear-resistant. At the same time, the electrical performance is stable and reliable, and the wiring is convenient and fast, suitable for various power systems and places. We also provide personalized customization services, designing and producing according to customer needs to ensure that products meet customer requirements and standards. Good product quality and affordable price, welcome to purchase.

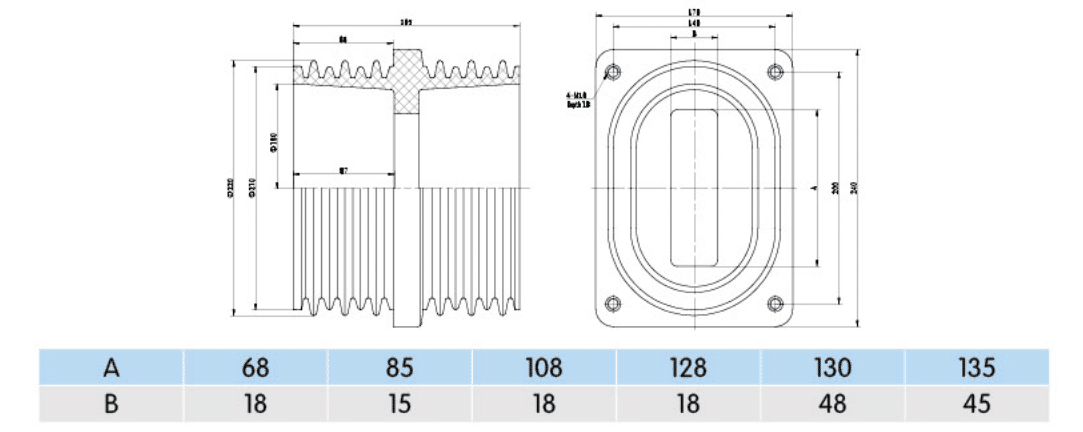

Drawing


Environmental

-Rated voltage: 12kV
-Rated current: 400A
-Rated frequency: 50-60Hz
-Voltage endurance test: 42kV
-Supports short-term overcurrent: 12.5kA
-Insulation level: 1min 42kV withstand voltage test, atmospheric insulation distance 140mm
